YNW Portable EV Charger (CCS2) | 3.5KW / 7KW | Tuya App Control

SUNSPIRE

YNW Portable EV Charger (CCS2) | 3.5KW / 7KW | Tuya App Control

$0.00 USD

Sold out

0.0

Specification: 3.5KW

3.5KW 7KW

Description

Experience the convenience of portable and intelligent charging with the YNW-Portable EV Charger. Whether you need a standard overnight charge or a faster power-up, this charger offers two power options to perfectly match your needs. Featuring smart control via the Tuya App and a robust, weatherproof design, it's the ideal charging solution for home, travel, and everyday use.

Key Features Across All Models:

Adjustable Charging Current: Tailor your charging session to your electrical setup. The current can be easily adjusted (8A to 16A for the 3.5KW model, and 8A to 32A for the 7KW model), providing flexibility and safety.
Smart Control with Tuya App: Connect your charger to the Tuya App to monitor charging status, schedule sessions, and adjust settings remotely from your smartphone.
Clear & Informative Display: A 2.8-inch LCD screen combined with a three-color LED indicator gives you at-a-glance information on charging speed, power consumption, temperature, and more.
Robust Safety System: Engineered for peace of mind, the charger includes comprehensive safety features:
- Over Current Protection
- Residual Current Protection (AC30mA, DC6mA)
- Ground Protection
- Surge Protection
- Over/Under Voltage Protection
- Over Temperature Protection
Built for All Conditions: With an IP65-rated outshell and an IP54-rated connector, this charger is fully protected against dust, water splashes, and is suitable for both indoor and outdoor environments.
Certified & Reliable: CE certified and designed to meet stringent IEC and EN standards, ensuring a safe and reliable charge every time.
Plug & Play: Simple to use with "Plug in and charge" functionality, making it accessible for everyone.

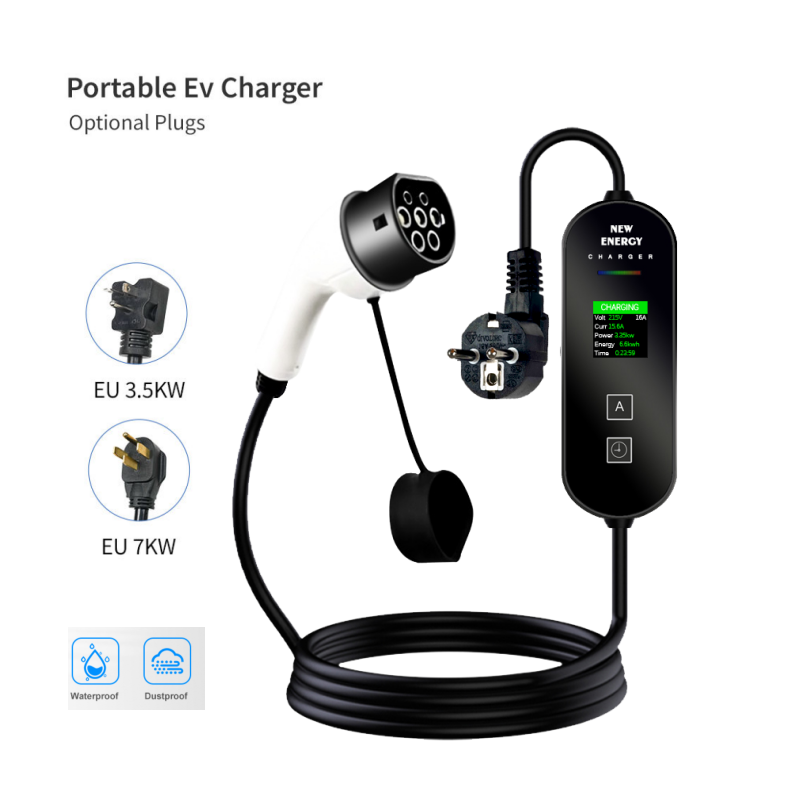

Choose Your Power Level:

Select the model that best fits your vehicle's charging capabilities and your daily routine.

3.5KW Model (YNW-3.5kw):
- Max Power: 3.5KW
- Max Current: 16A (Adjustable: 8-10-13-16A)
- Ideal for reliable overnight charging and for vehicles with smaller battery packs.
7KW Model (YNW-7kw):
- Max Power: 7KW
- Max Current: 32A (Adjustable: 8-10-16-24-32A)
- Provides twice the charging speed, significantly reducing charging time for daily use.

Specifications Table:

Feature	3.5KW Model	7KW Model
Model	YNW-3.5kw	YNW-7kw
Power Supply	1P+N+PE	1P+N+PE
Rated Voltage	AC230V	AC230V
Rated Power	3.5KW	7KW
Maximum Current	16A (Adjustable)	32A (Adjustable)
Connector	Cable + Type 2	Cable + Type 2
App Control	Tuya APP	Tuya APP
Ingress Protection	Outshell IP65 / Connector IP54	Outshell IP65 / Connector IP54
Work Temperature	-30°C to 50°C	-30°C to 50°C
Cable Length	5.5M (0.5M Input + 5M Output)	5.5M (0.5M Input + 5M Output)
Certification	CE	CE
