Portable EV Charger | 3.7KW / 7.4KW / 11KW / 22KW | CCS2 Type 1/2 Connector

$0.00 USD

Sold out

0.0

Specification: 3.7KW

3.7KW 7.4KW 11KW 22KW

Description

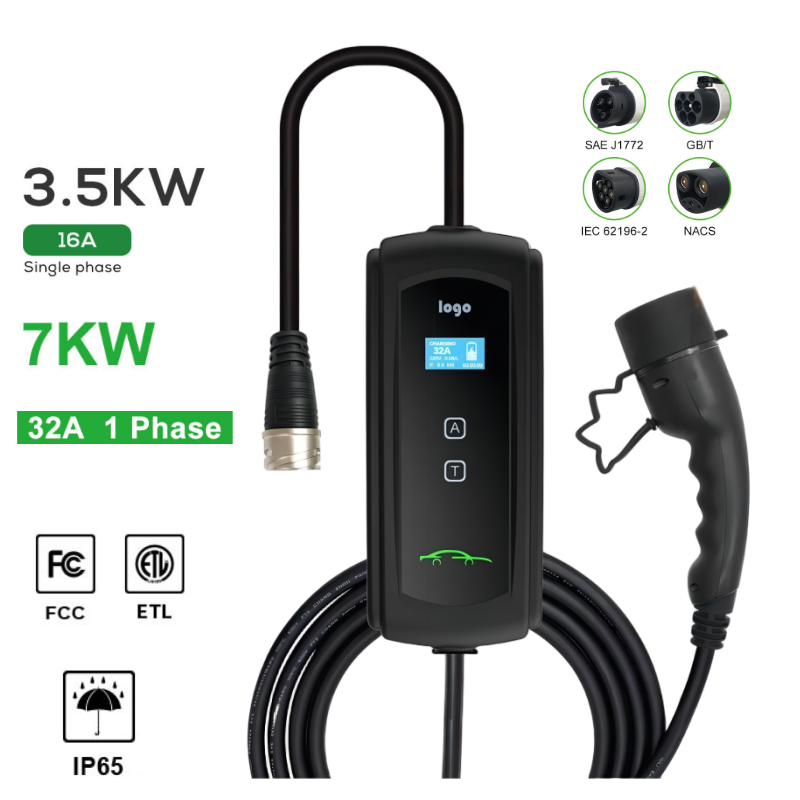

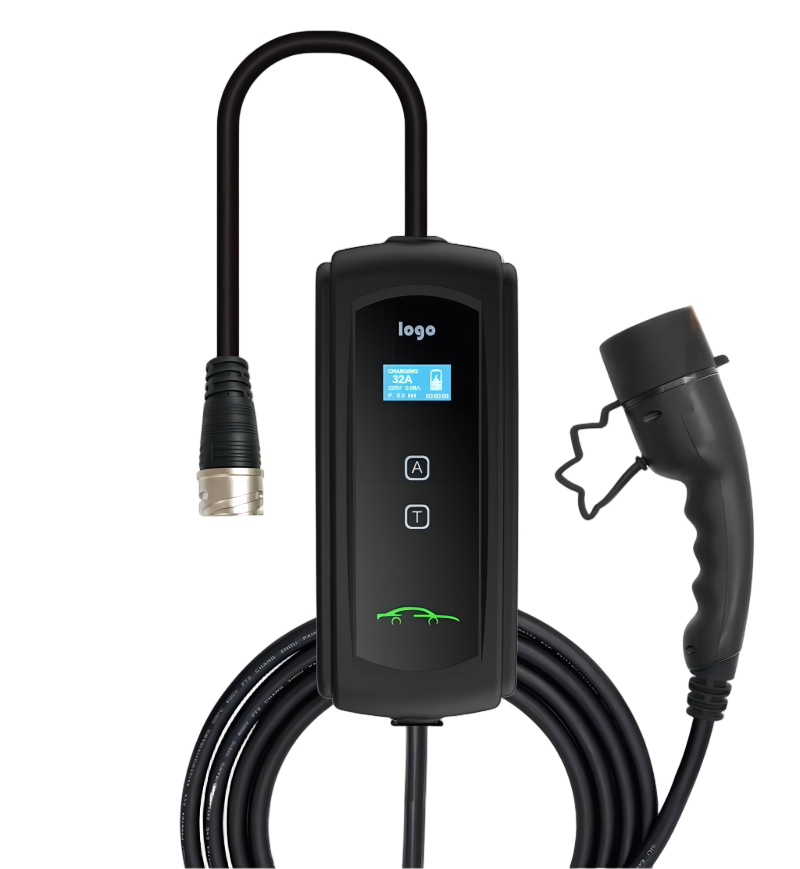

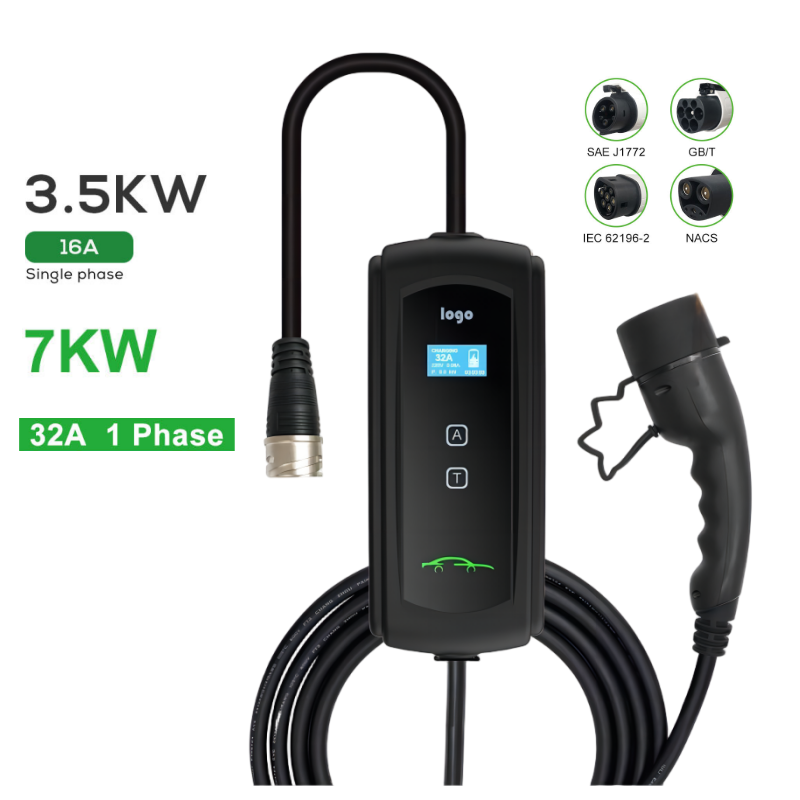

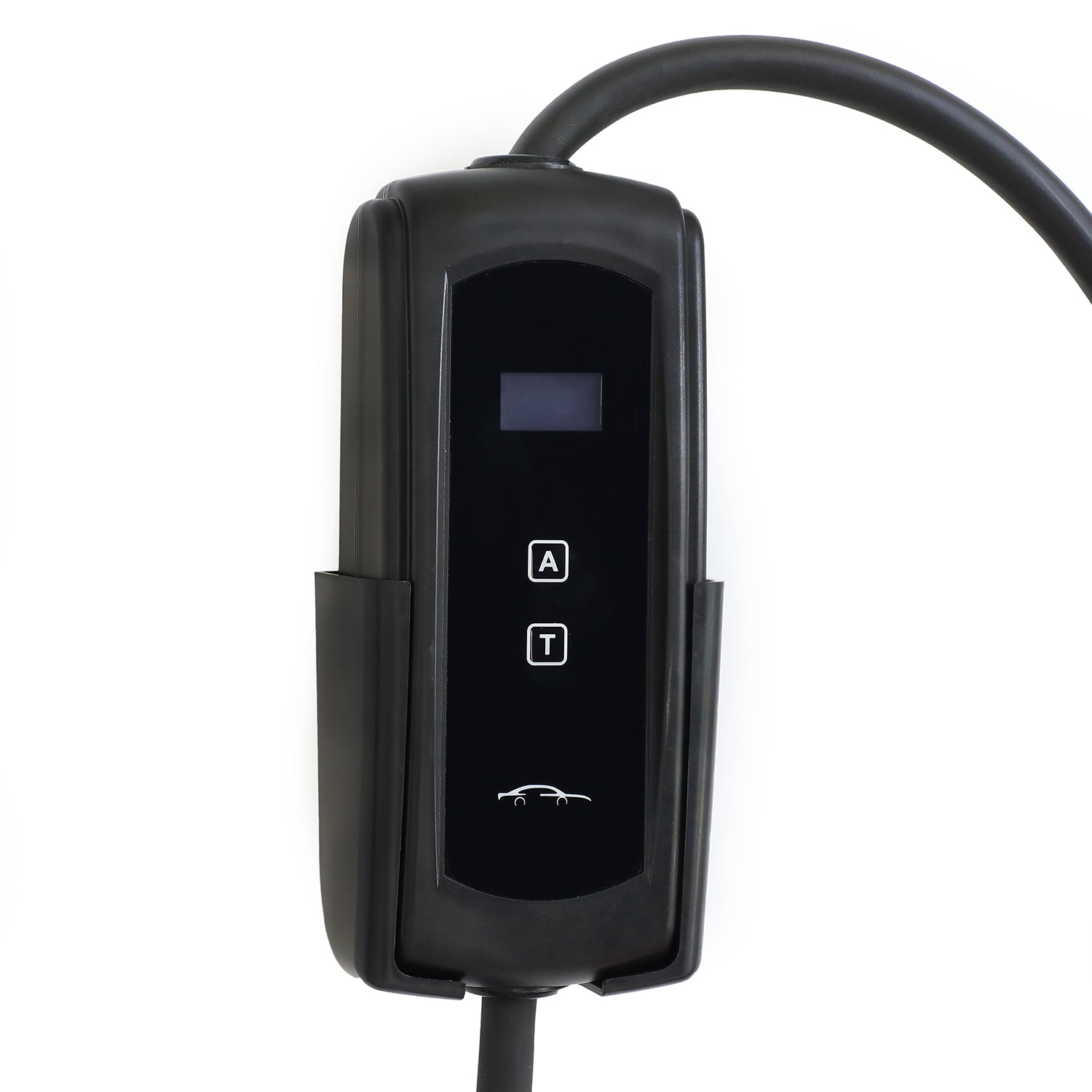

Power up your electric vehicle anywhere, anytime with the XB1L/XB3L Portable EV Charger. Designed for ultimate flexibility and safety, this charger is the perfect companion for home use, road trips, and emergency charging. With multiple power options and adjustable current settings, you can tailor your charging speed to meet your specific needs.

Key Features Across All Models:

Adjustable Current: Easily adjust the charging current (e.g., 10A, 13A, 16A, 24A, 32A) directly from the charger to match your power source, ensuring safe and efficient charging.
Clear LCD Display: A bright 1.3-inch LCD screen and a three-color LED indicator provide real-time information on charging status, current, voltage, and temperature.
Smart & Convenient: Features simple "Plug and Charge" functionality. An optional Tuya Smart App integration allows for remote monitoring and control.
Comprehensive Safety Protections: Your vehicle and home are protected by a suite of safety features, including:
- Over and Under Voltage Protection
- Over Current Protection
- Residual Current Protection (AC30mA, DC6mA)
- Ground Protection
- Surge Protection
- Over Temperature Protection
Durable & Weatherproof: With an IP65-rated outshell and an IP54-rated connector, this charger is built to withstand dust, rain, and harsh weather conditions, making it reliable for both indoor and outdoor use.
Certified & Compliant: All models are certified (CE/UKCA/CB) and designed to meet international standards (EN 61851/EN 62196).
Portable Design: Compact and easy to carry, it's the perfect solution for on-the-go charging without the need for a permanent installation.

Choose Your Perfect Model:

Select the power level and phase that best suits your vehicle and electrical system.

Single-Phase Models (1P+N+PE, AC220-240V): Ideal for standard home outlets.

3.7KW (Model: XB1L-16A-1): Max 16A, perfect for overnight charging. (Color: White + Black)
7.4KW (Model: XB1L-32A-1): Max 32A, for faster charging speeds. (Color: White + Black)

Three-Phase Models (3P+N+PE, AC380-450V): Designed for high-power industrial or commercial outlets for maximum charging speed.

11KW (Model: XB3L-16A-1): Max 16A, significantly reduces charging time. (Color: Black)
22KW (Model: XB3L-32A-1): Max 32A, our fastest portable charging solution. (Color: Black)

Specifications Table:

Feature	3.7KW Model	7.4KW Model	11KW Model	22KW Model
Model	XB1L-16A-1	XB1L-32A-1	XB3L-16A-1	XB3L-32A-1
Power Supply	1P+N+PE	1P+N+PE	3P+N+PE	3P+N+PE
Rated Voltage	AC220-240V	AC220-240V	AC380-450V	AC380-450V
Rated Power	3.7KW (Max)	7.4KW (Max)	11KW (Max)	22KW (Max)
Max Current	16A (Adj.)	32A (Adj.)	16A (Adj.)	32A (Adj.)

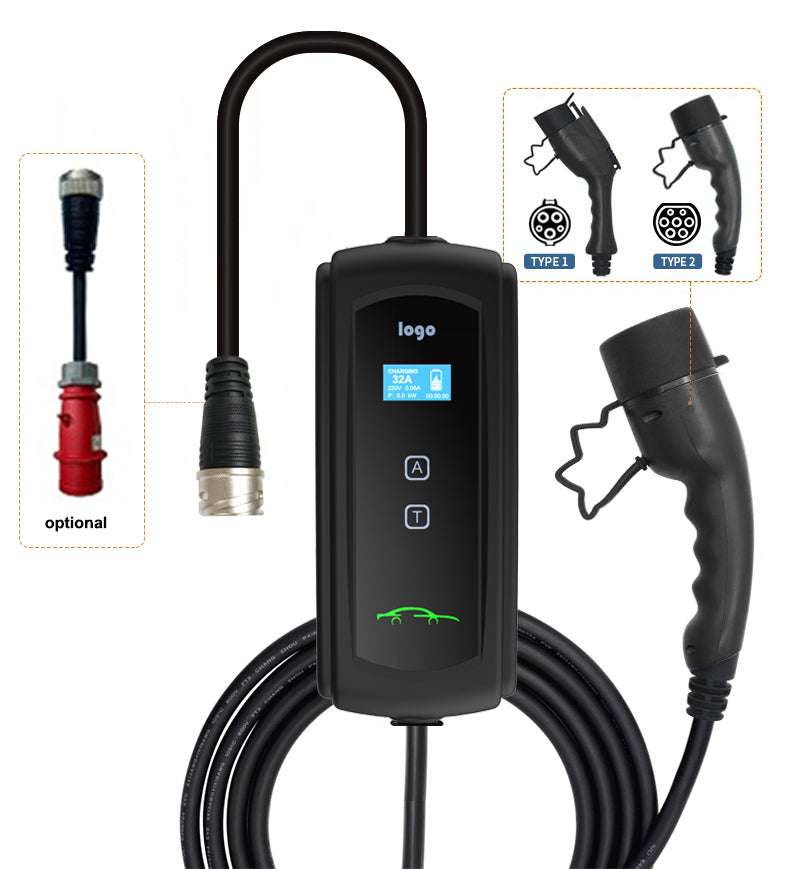

Input Plug	Standard Plug	Standard Plug	CEE Plug	CEE Plug

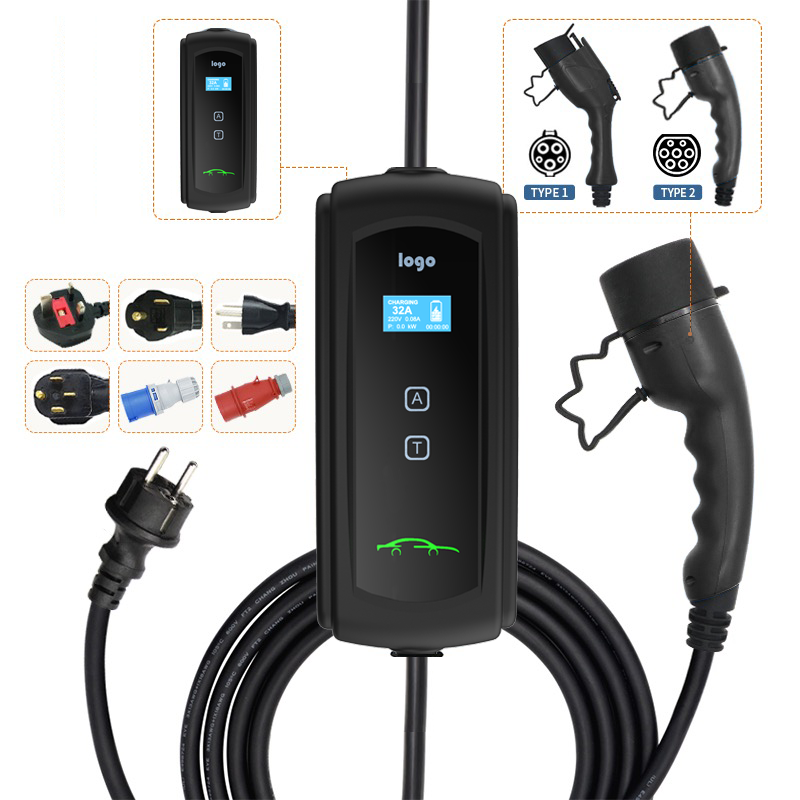

Connector	Type 2	Type 1 / Type 2	Type 1 / Type 2	Type 1 / Type 2
Color	White + Black	White + Black	Black	Black
Work Temp.	-25°C to 50°C	-25°C to 50°C	-25°C to 50°C	-25°C to 50°C
Cable Length	4.5M (0.5M Input + 4M Output)	4.5M (0.5M Input + 4M Output)	4.5M (0.5M Input + 4M Output)	4.5M (0.5M Input + 4M Output)
