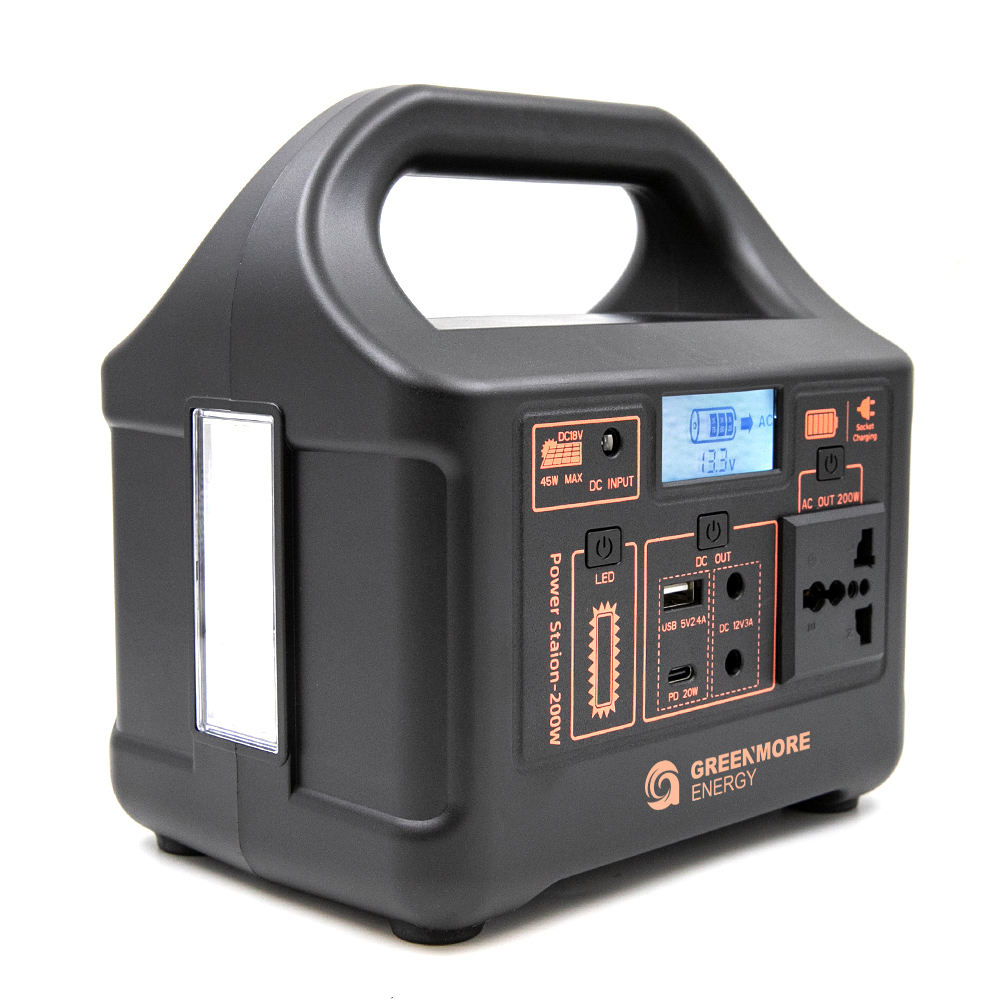

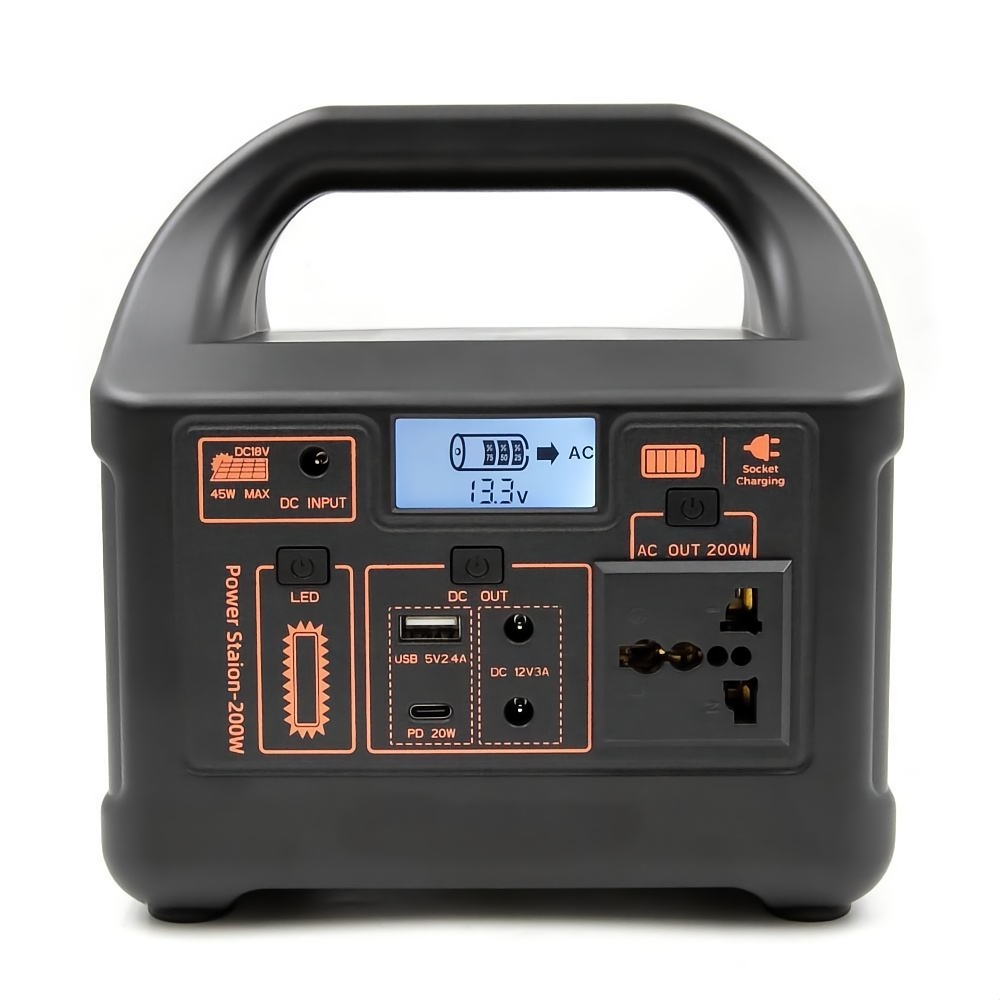

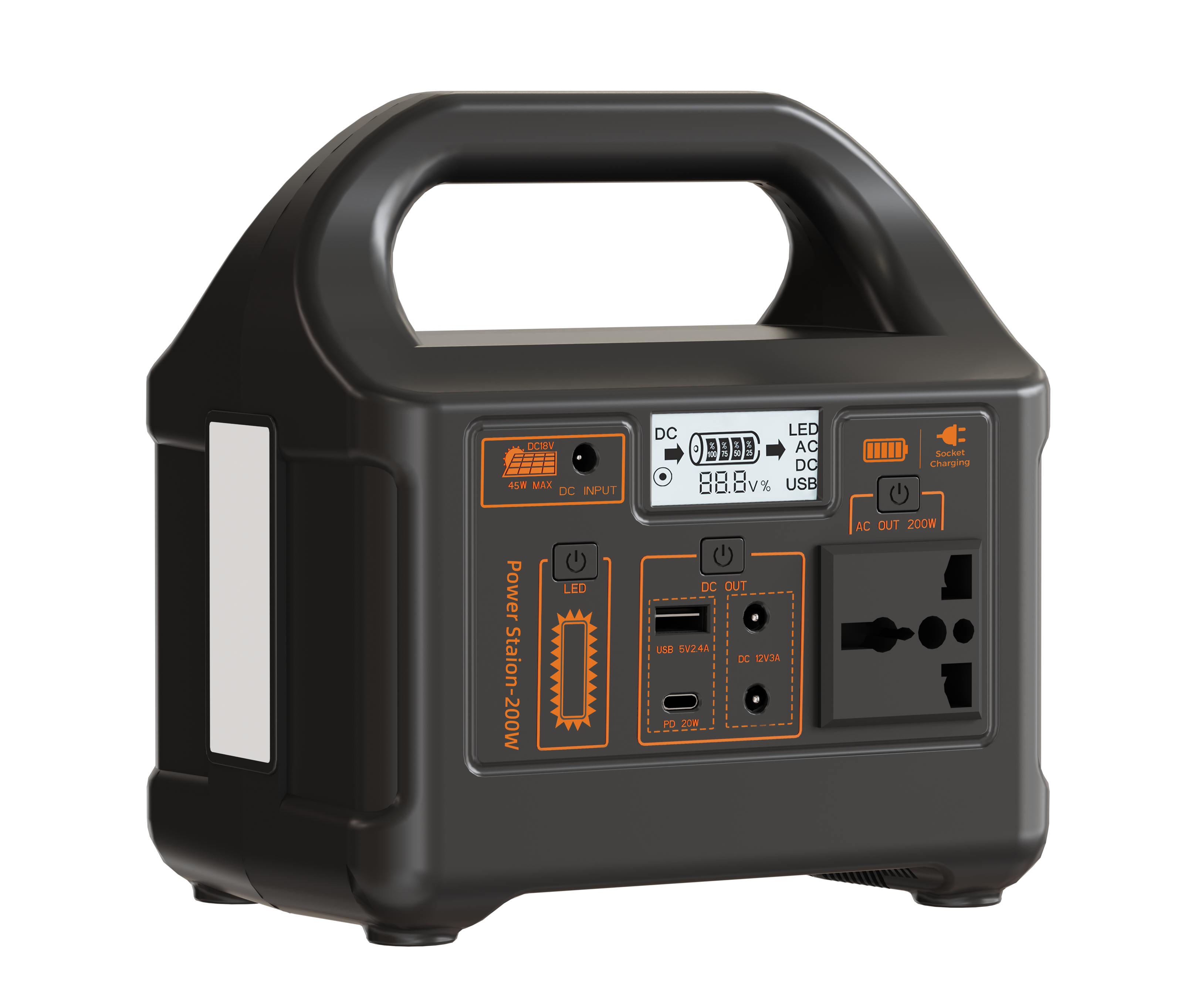

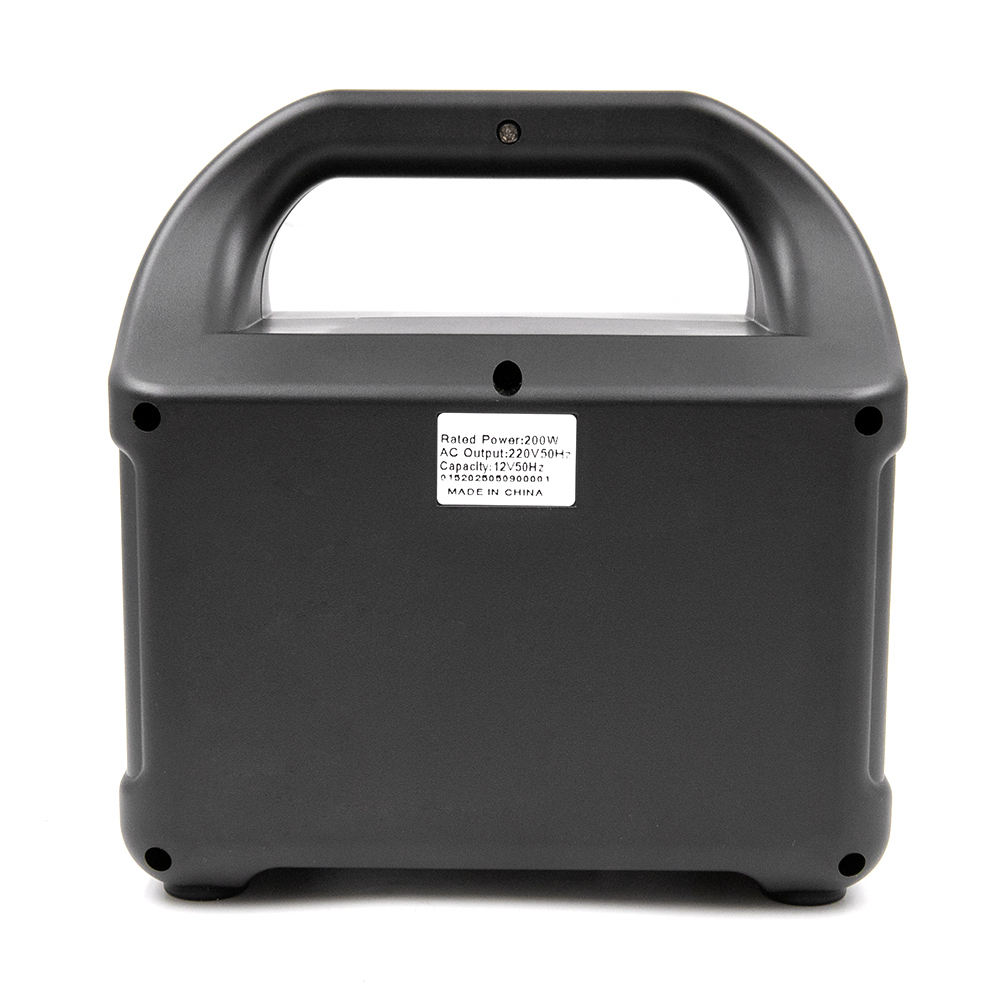

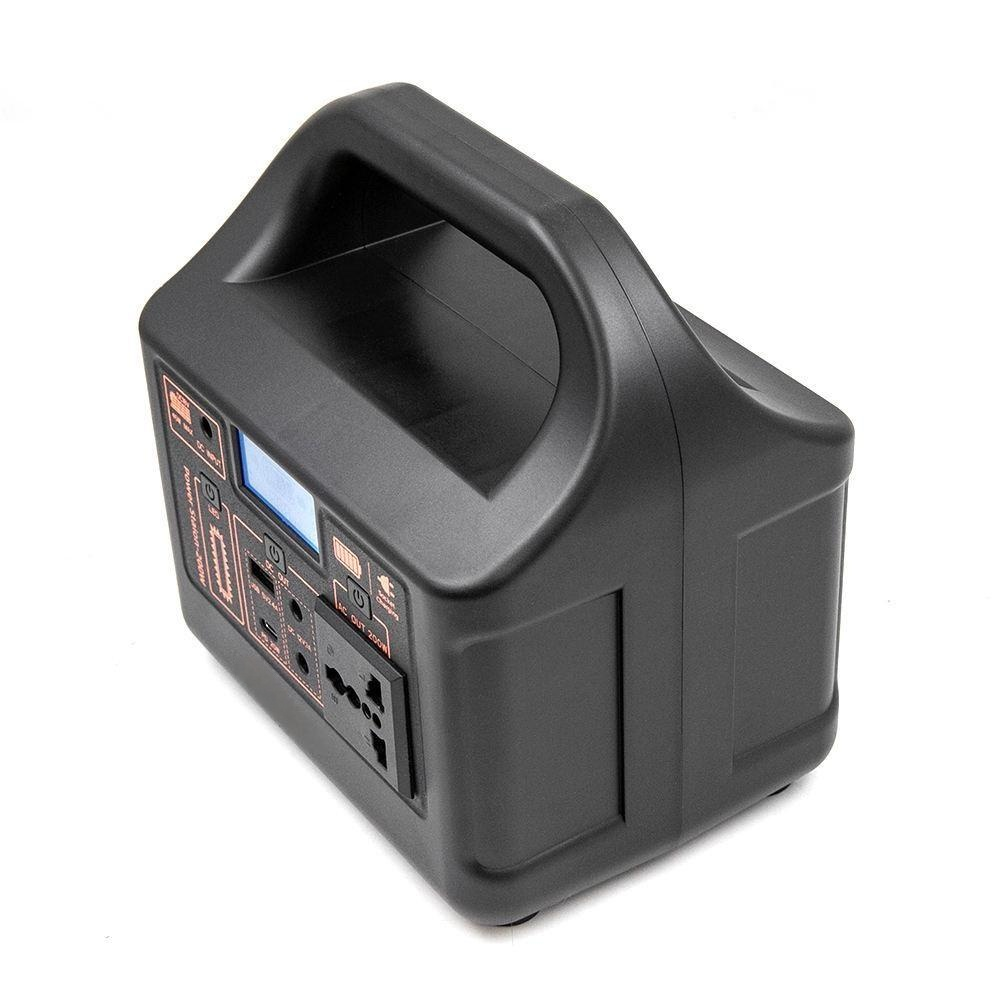

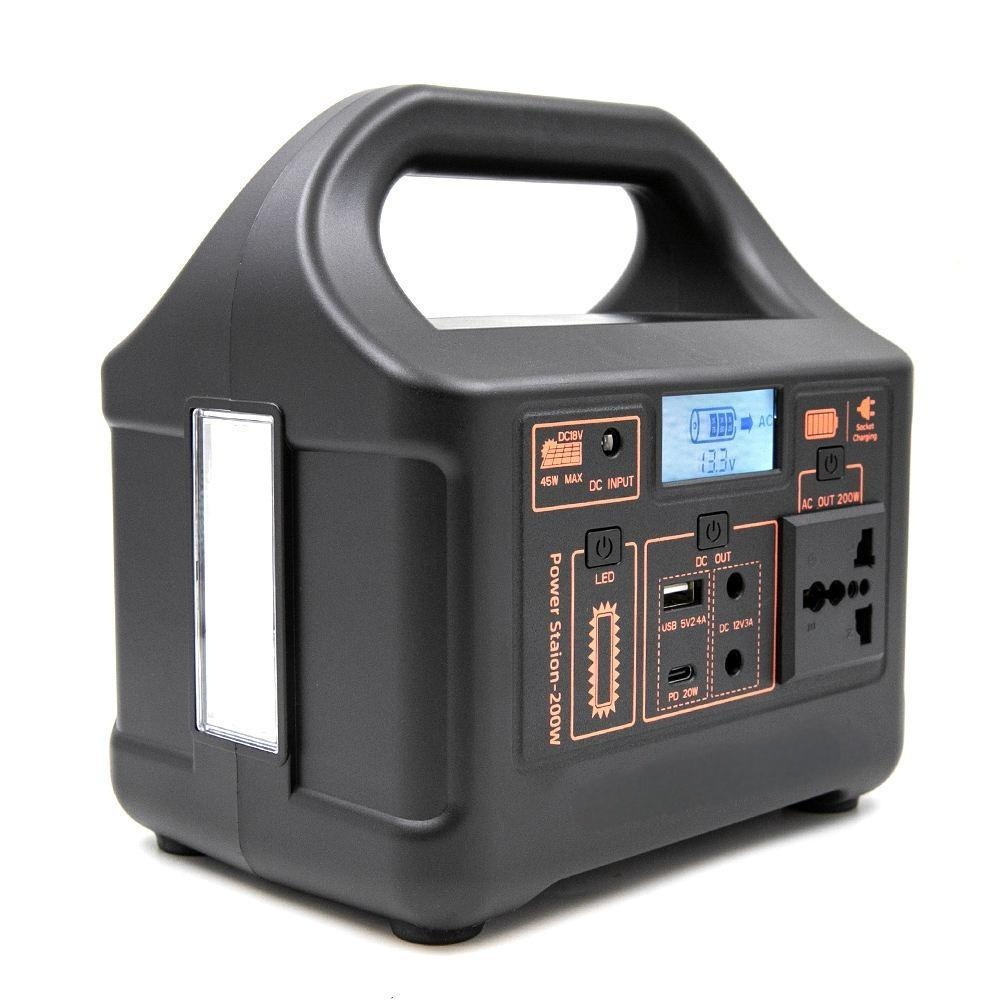

T-Eg -Portable 200W
Description
Specifications & Features:
Power & Capacity:
- Model: 200W
- Rated Power: 200W
- Battery Type: LFePO4
- Battery Capacity: 12V 153.6Wh
- Conversion Efficiency: Maximum Value >90%
Output:
- Output Waveform: Modified Sine Wave
- AC Output Voltage: 220V/110V±5%
- AC Output Frequency: 50Hz/60Hz±3Hz

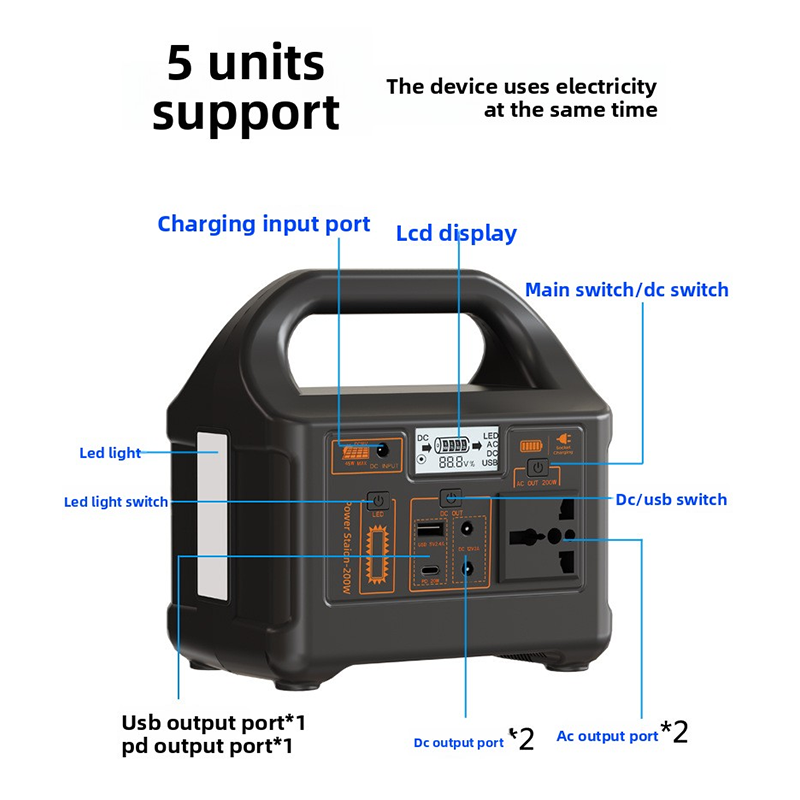

- AC Output Socket: Universal Socket
- DC Output Voltage: DC5V2.4A, 1*USB:DC12V3A, 2*DCS521, DC5521 Ponx2, PD 20Wx1
Input & Charging:
- Charging Interface: External Charger Port and Solar Panel Charging Port DC5521*1 (Built in solar intelligent controller)

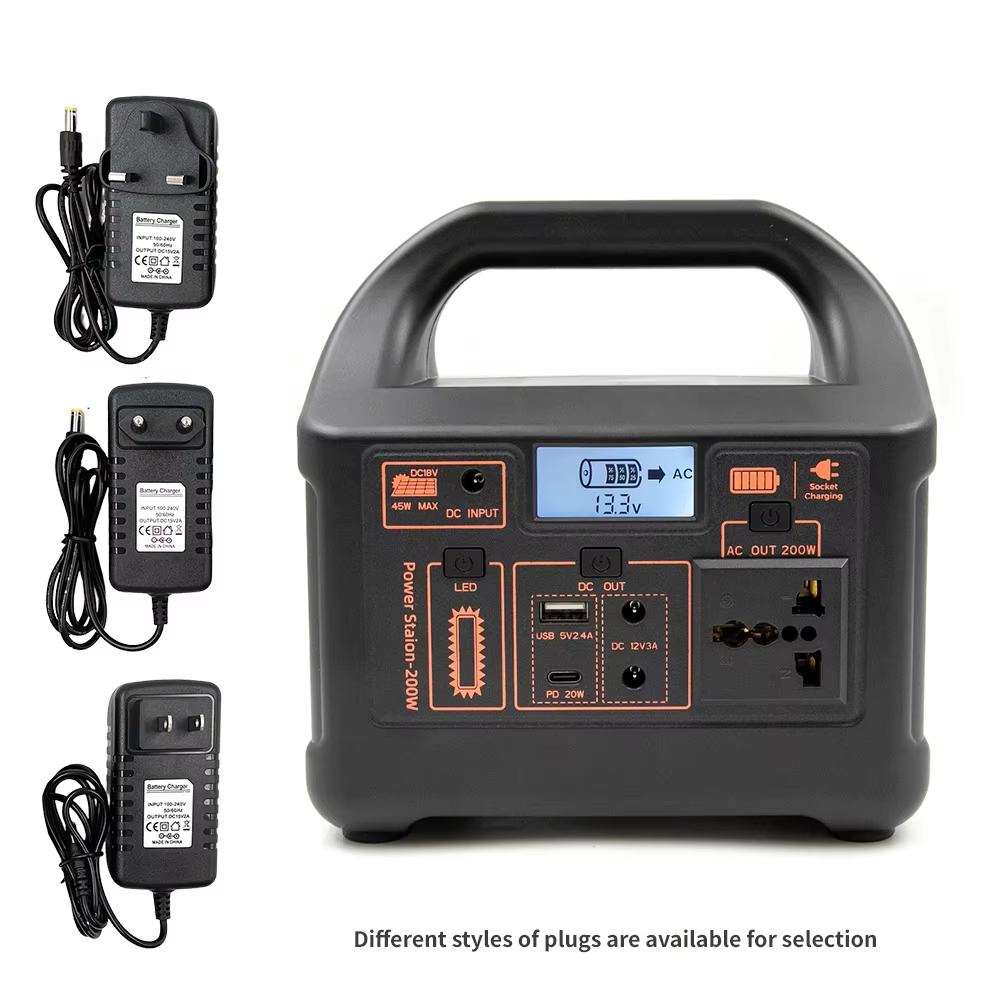

- AC Charger Specifications: 15V 2A

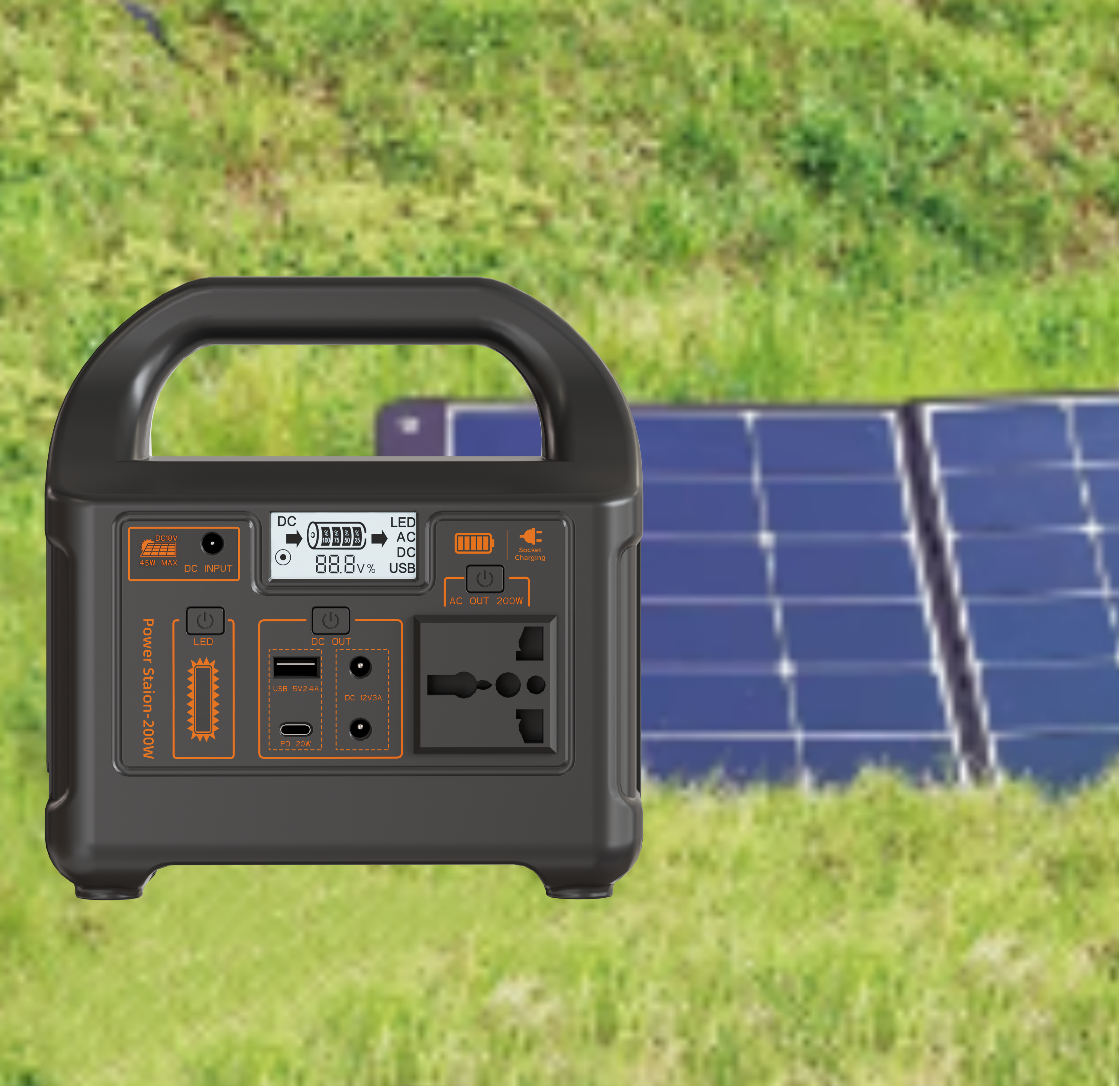

- Solar Panel Specifications (optional): 18V40W
- Charging Current: Maximum Value 2A
- Charging time: After full discharge, the battery capacity reaches 100% after 6 hours of charging
Features & Protection:
- LED light States: LED bright, half-bright, flashing, LED of 4 states
- LCD: Battery Capacity, Battery Voltage, State of Charge, State of Discharge
- Protection Functions: Low Voltage, Over Voltage, Over Load, Over Temperature, Short Circuit
Physical Details:
- Structural Characteristics: ABS Fireproof Enclosure
- Net weight(kg): 1.8kg

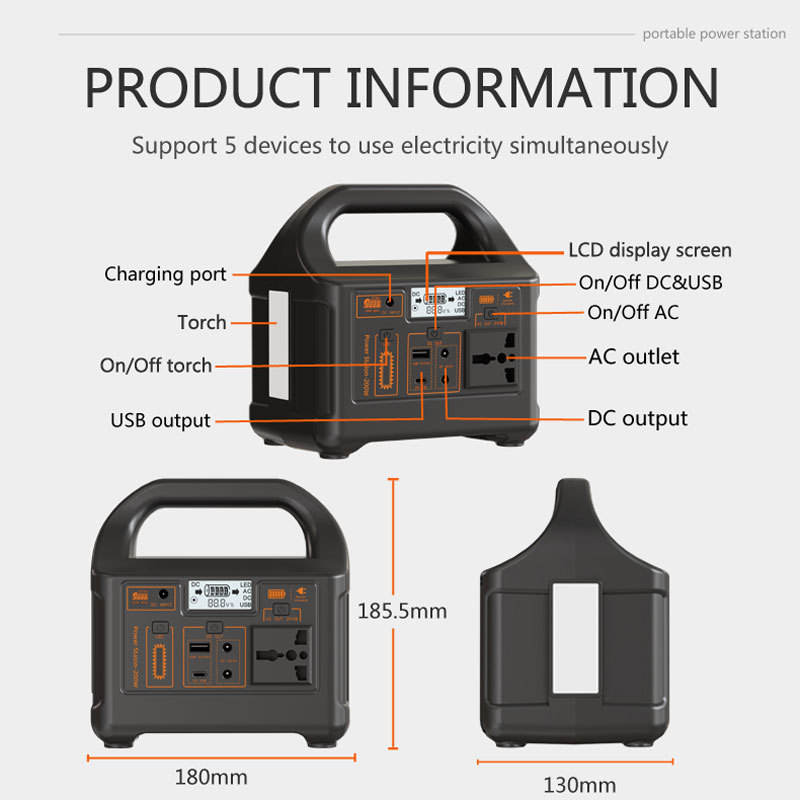

- Product Size W*D*H(mm): 180*130*185.5
- Heat Dissipation: Intelligent Temperature Control Cooling Fan
- Noise: 1 Meter Distance < 45 dB
Operating Conditions:
- Operating Ambient Temperature: -10°C~40°C
- Operating Environment Humidity: 10~85%
- Storage Ambient Temperature: -20~70°C Without Condensation
- Storage Environment Humidity: 5~90%
