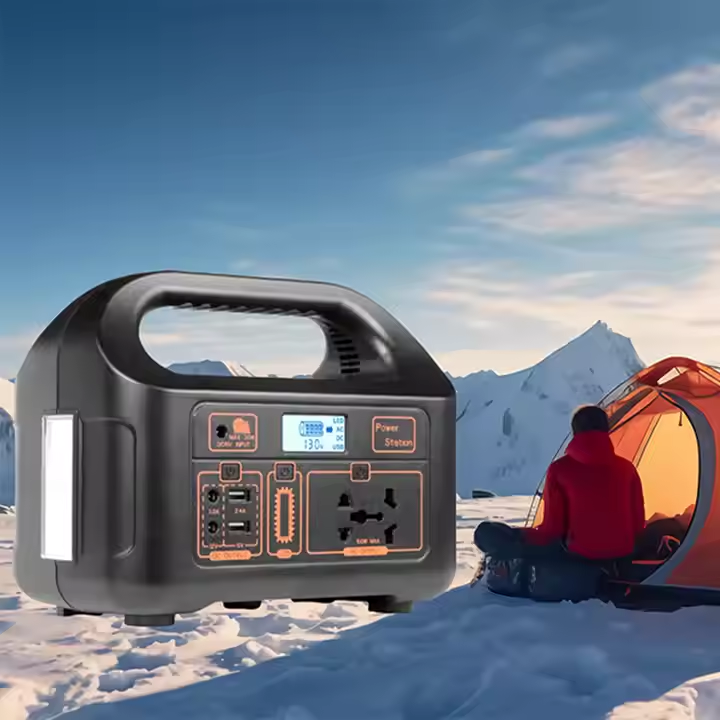

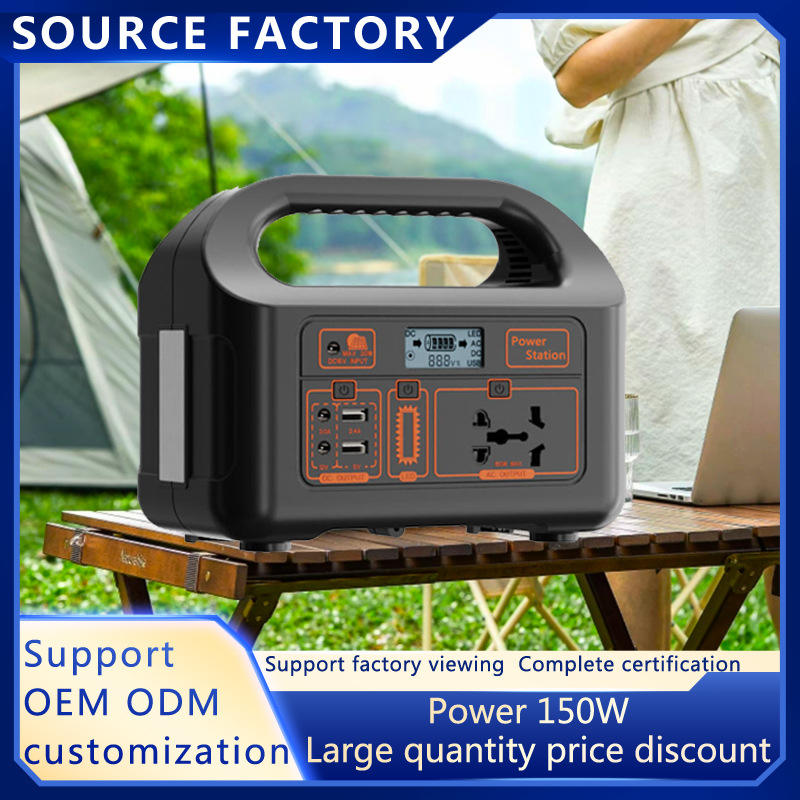

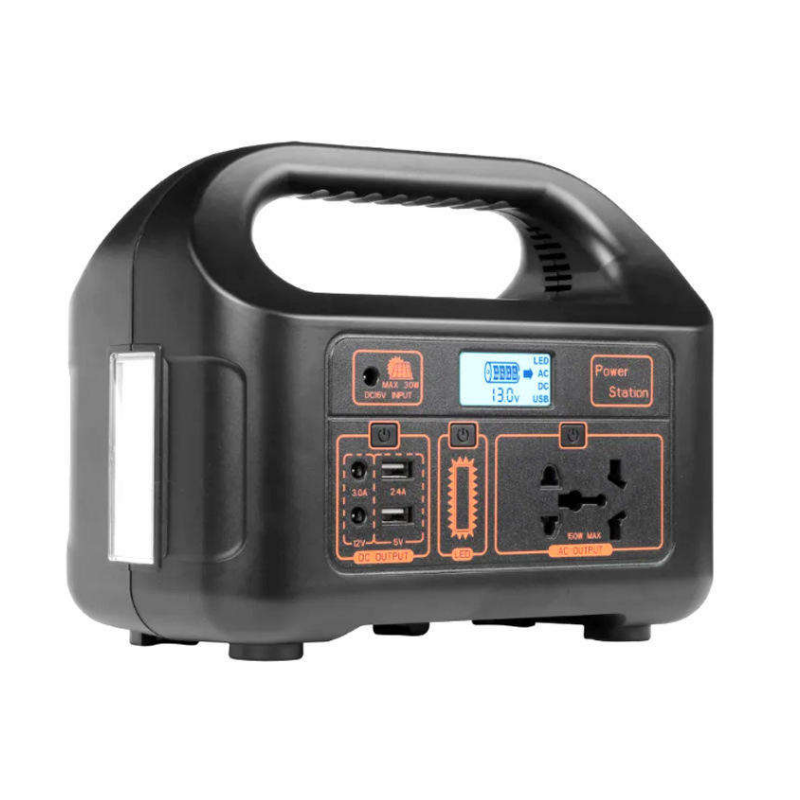

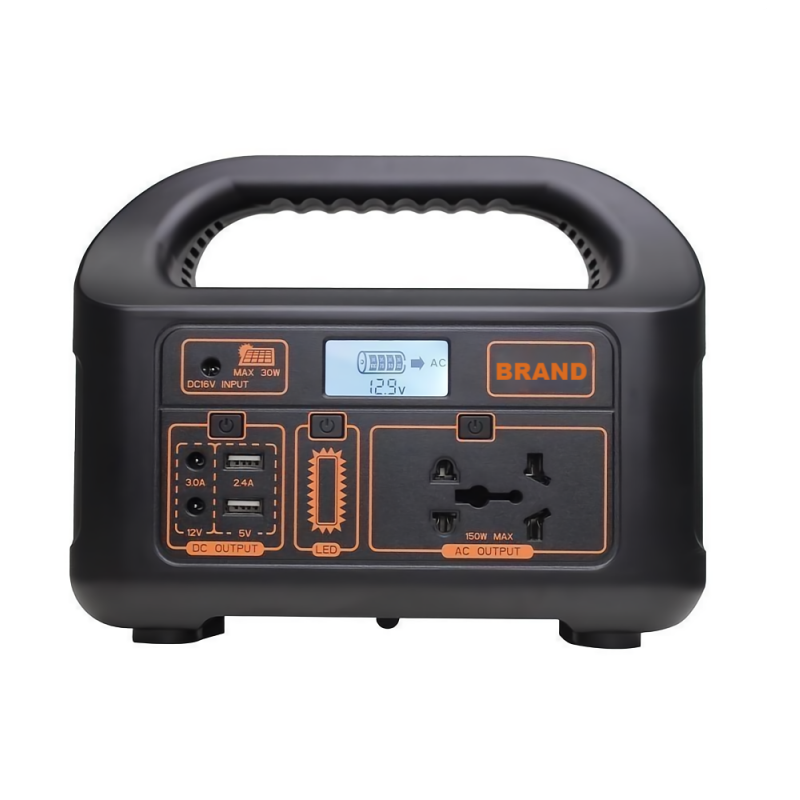

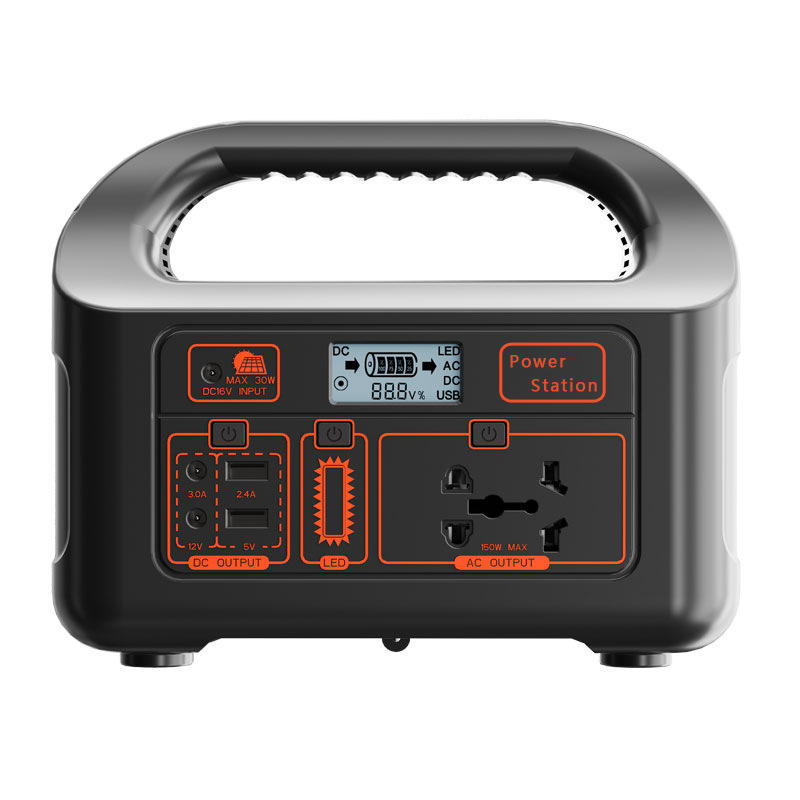

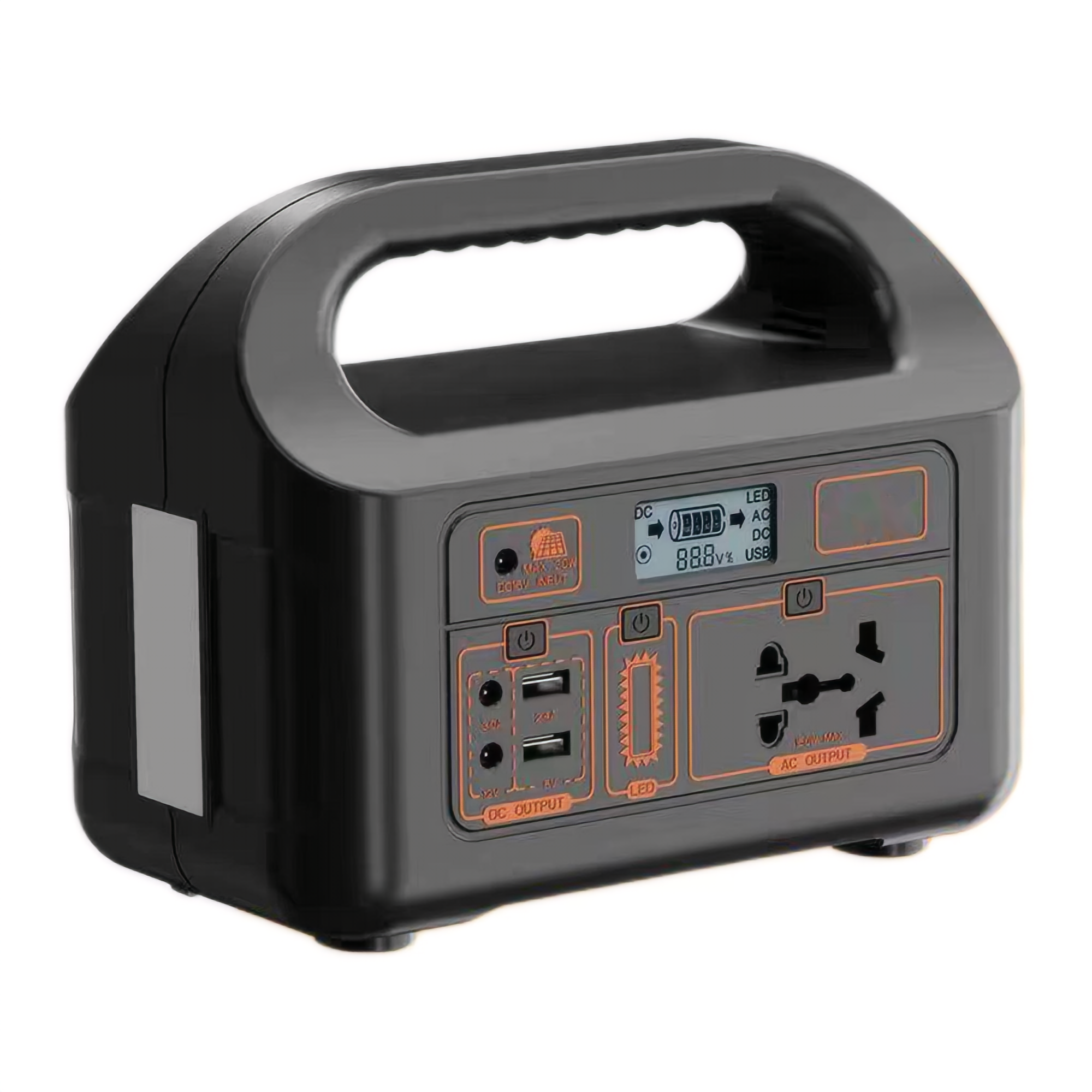

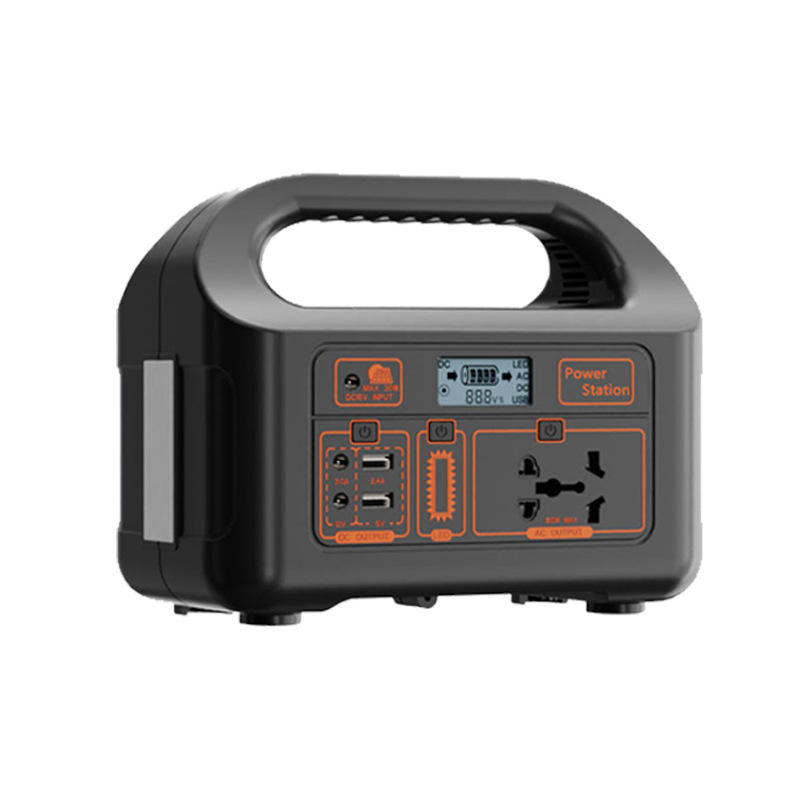

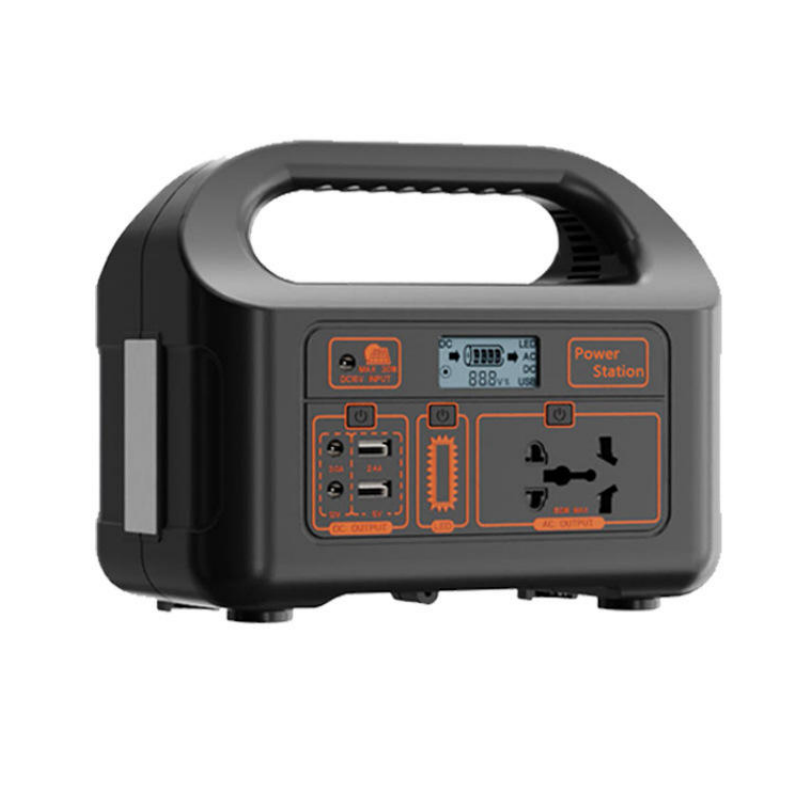

T-Eg -Portable 150W
Description

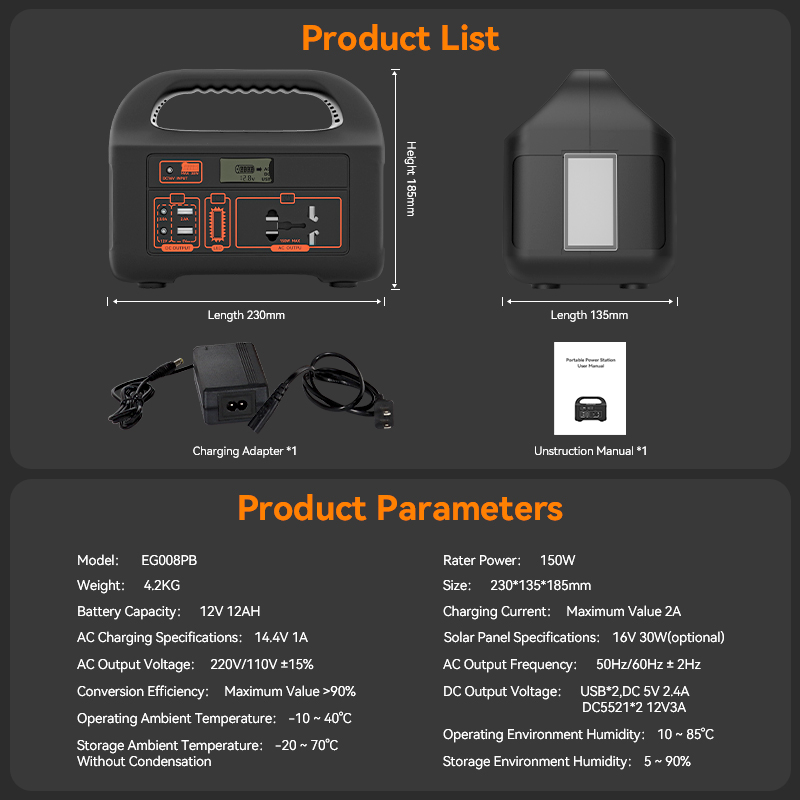

Specifications & Features:
Power & Capacity:
- Model: 150W
- Rated Power: 150W
- Battery Type: Lead-Acid Maintenance-Free Battery
- Battery Capacity: 12V 12AH
- Conversion Efficiency: Maximum Value >90%

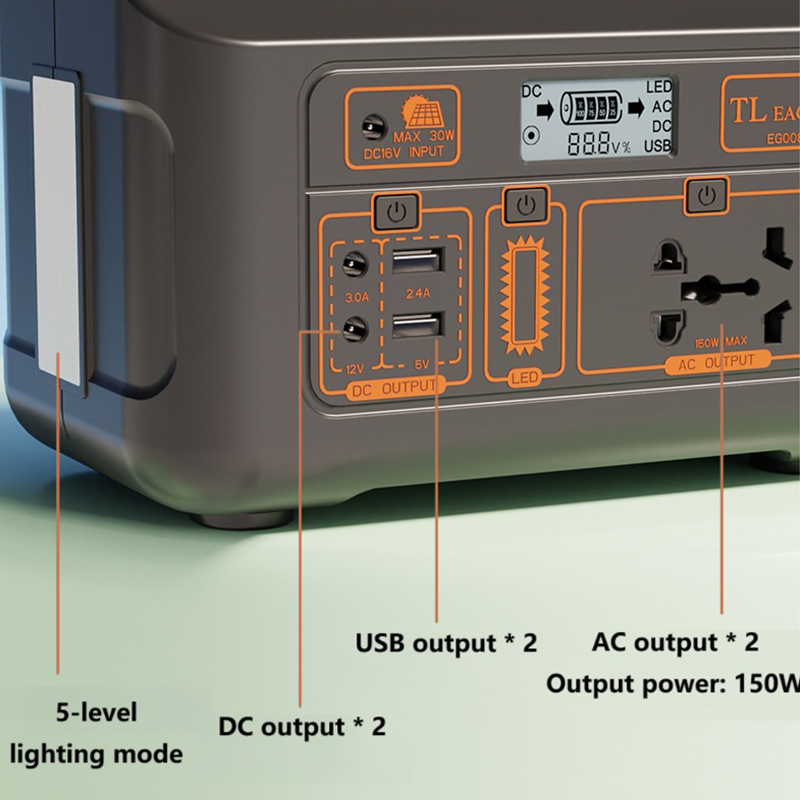

Output:
- Output Waveform: Modified Sine Wave
- AC Output Voltage: 220V/110V±5%
- AC Output Frequency: 50Hz/60Hz±2Hz

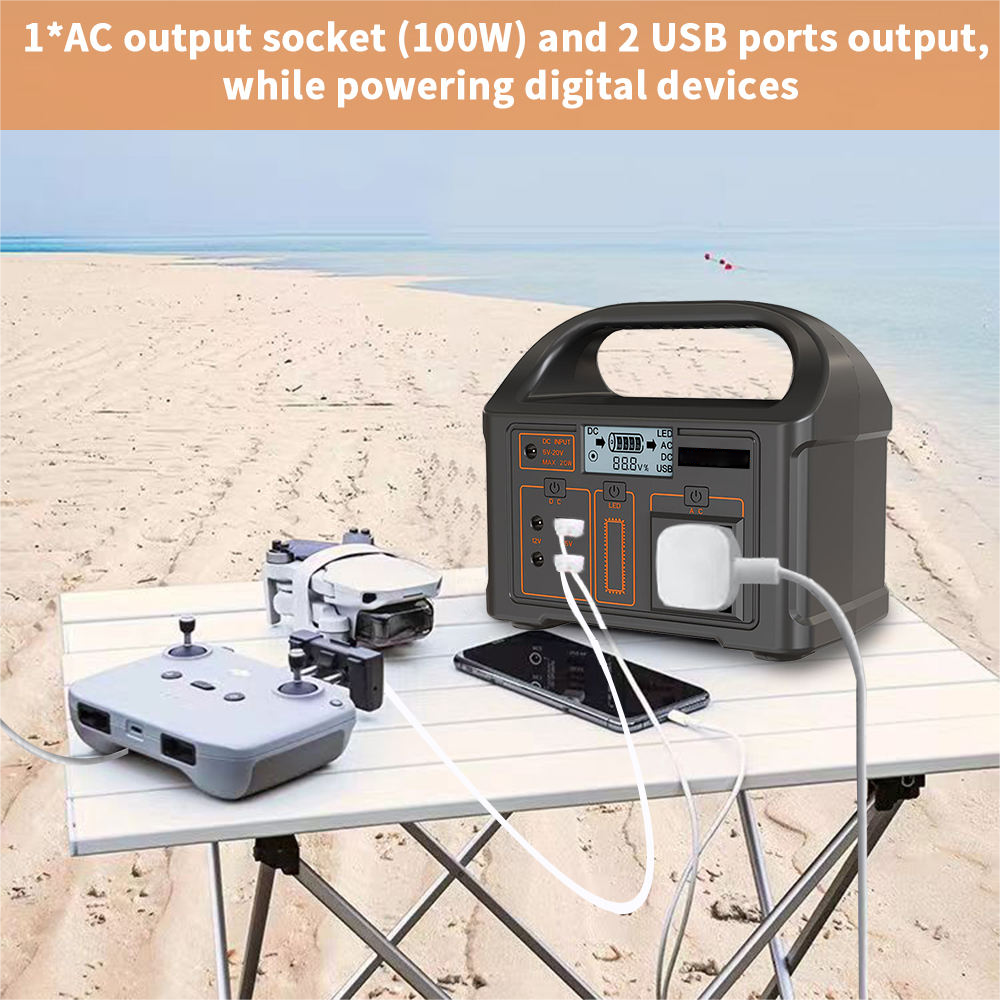

- AC Output Socket: Universal Socket

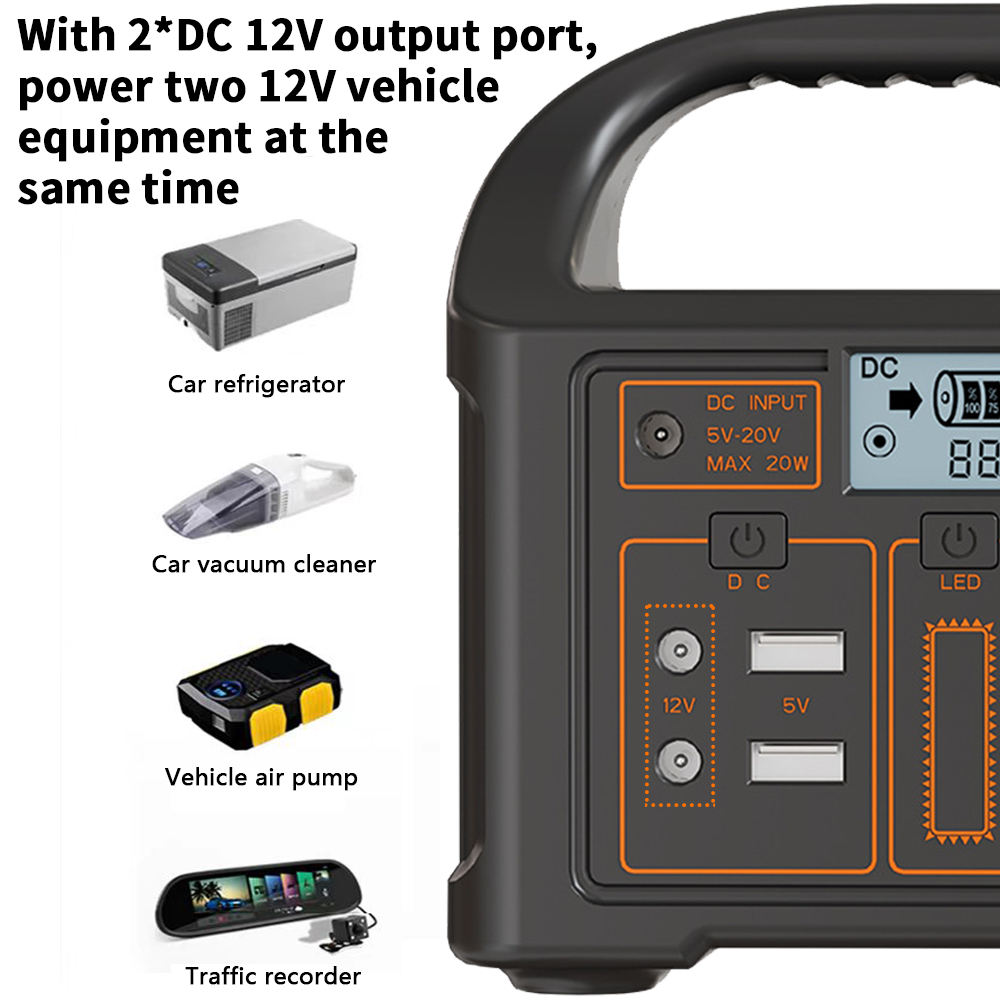

- DC Output Voltage: DC5V2.4A, 2*USB:DC12V3A, 2*DCS521
Input & Charging:

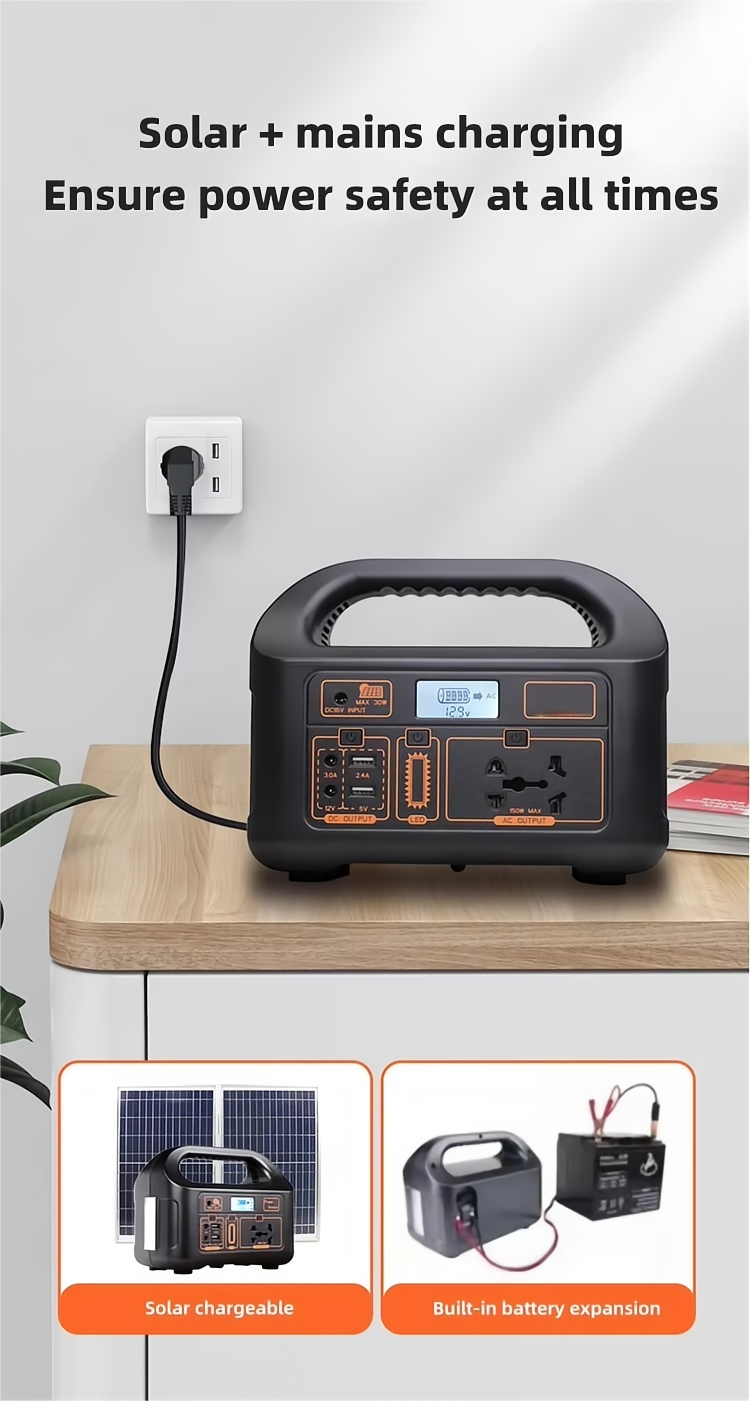

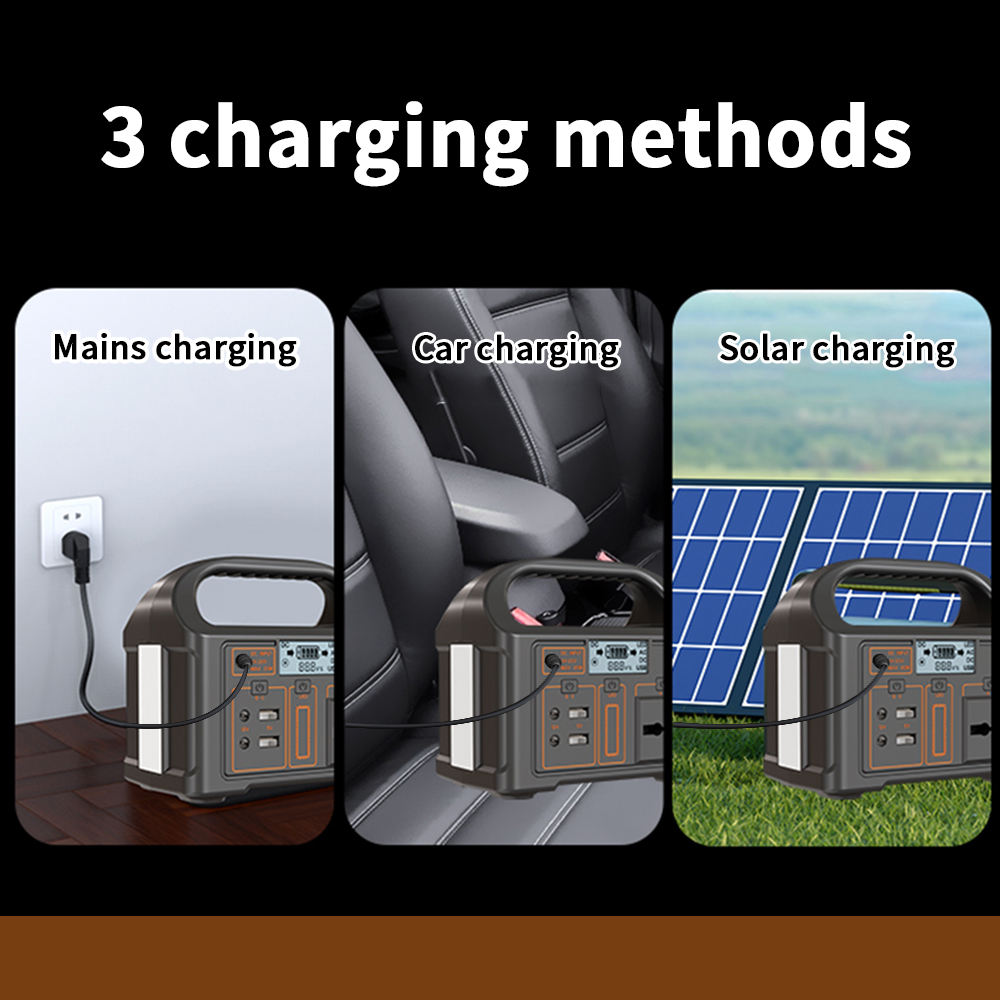

- Charging Interface: External Charger Port and Solar Panel Charging Port DC5521*1 (Built in solar intelligent controller)
- AC Charger Specifications: 14.6V 1A

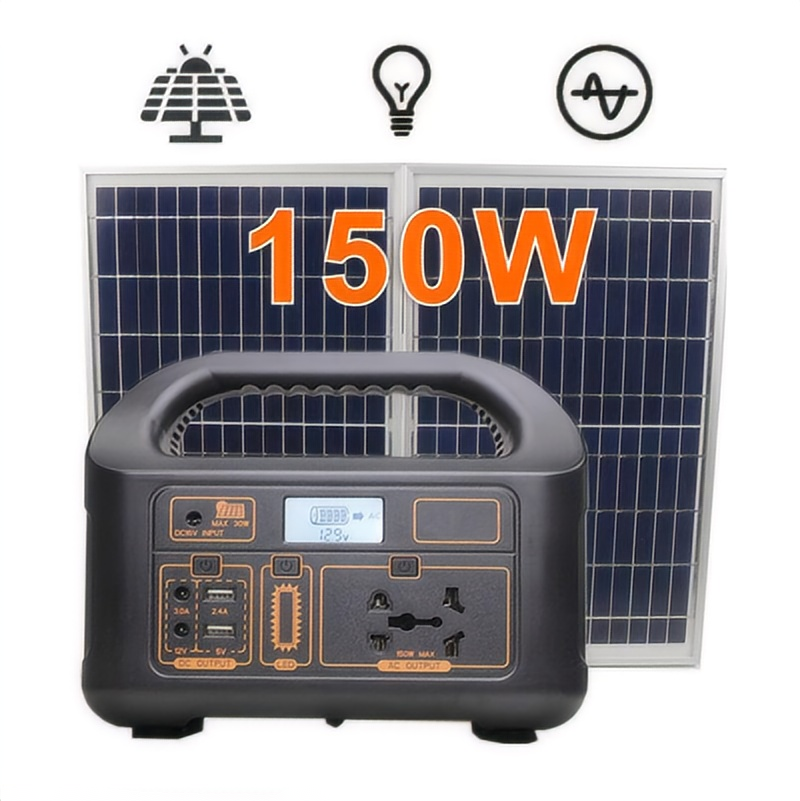

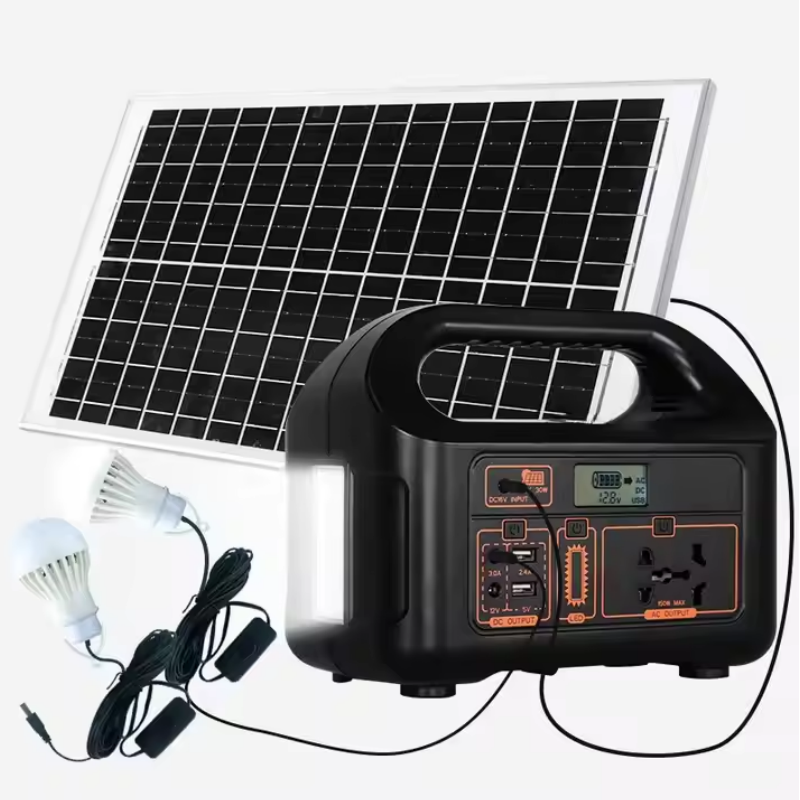

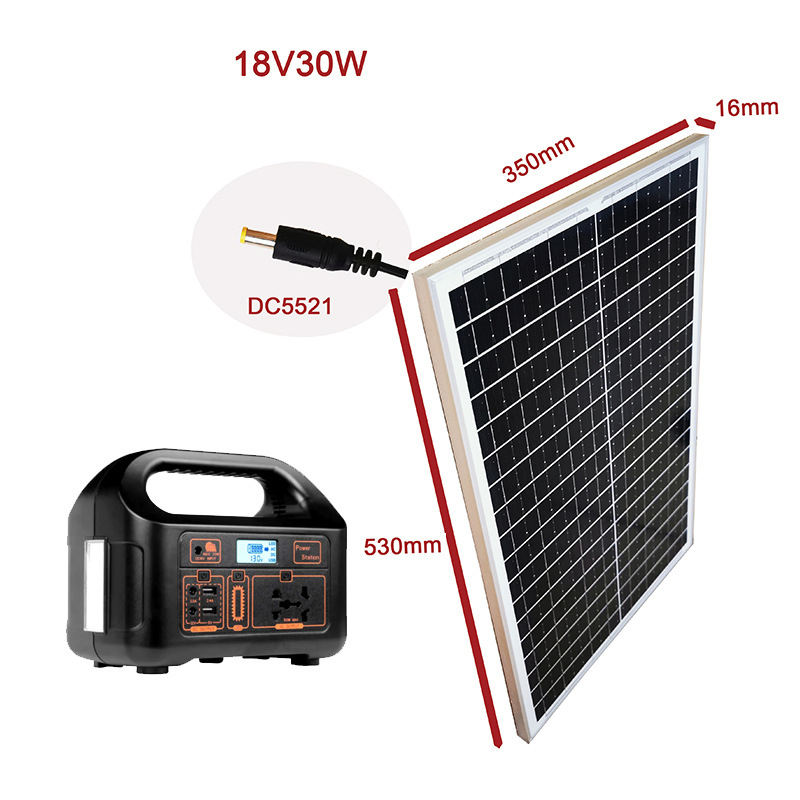

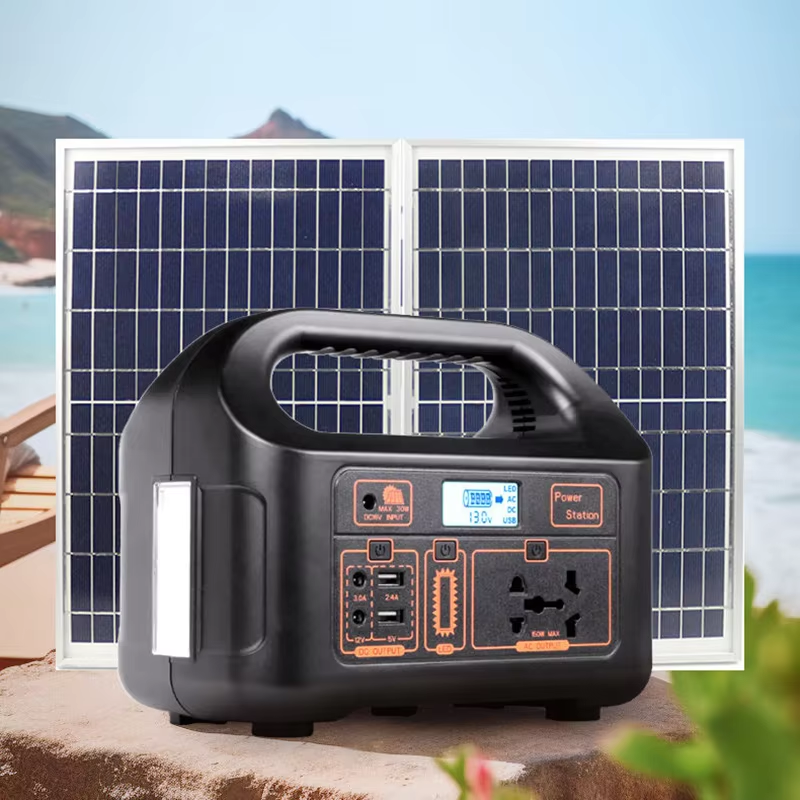

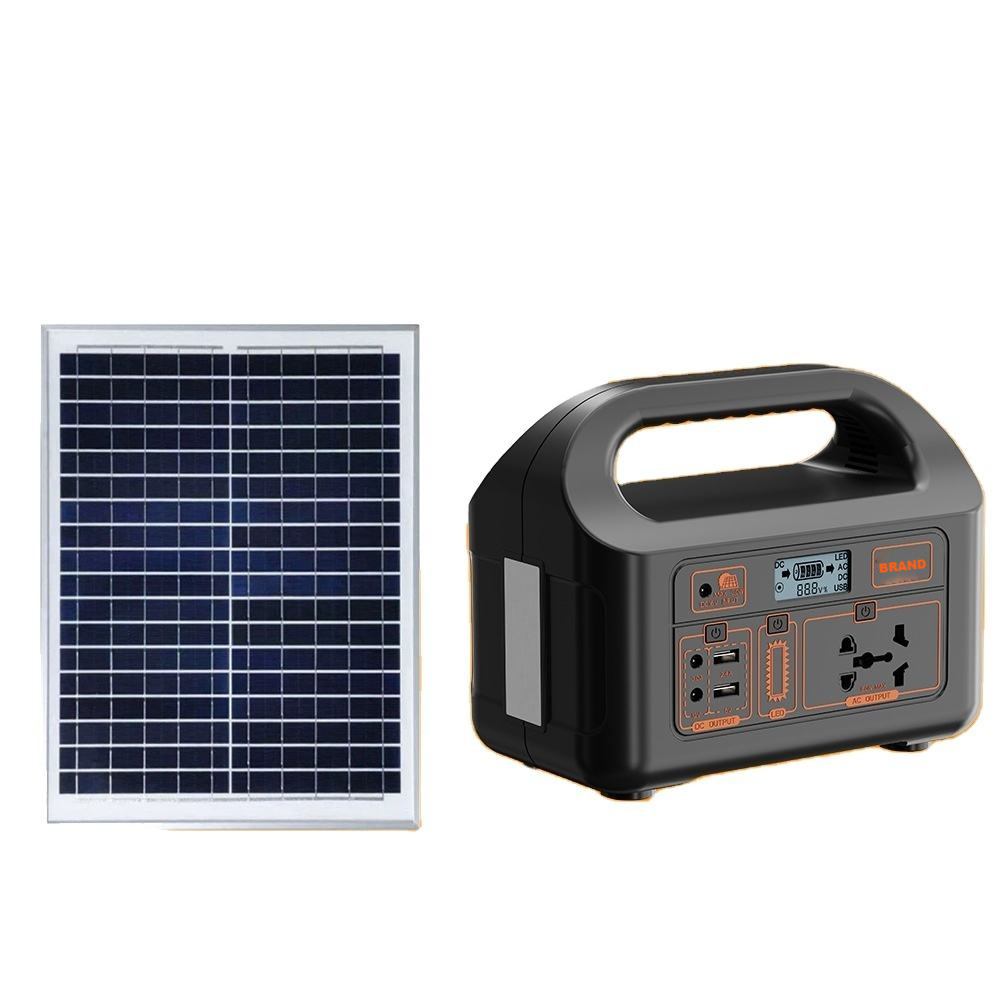

- Solar Panel Specifications (optional): 18V30W
- Charging Current: Maximum Value 2A
- Charging time: After full discharge, the battery capacity reaches 80% after 5 hours of charging
Features & Protection:

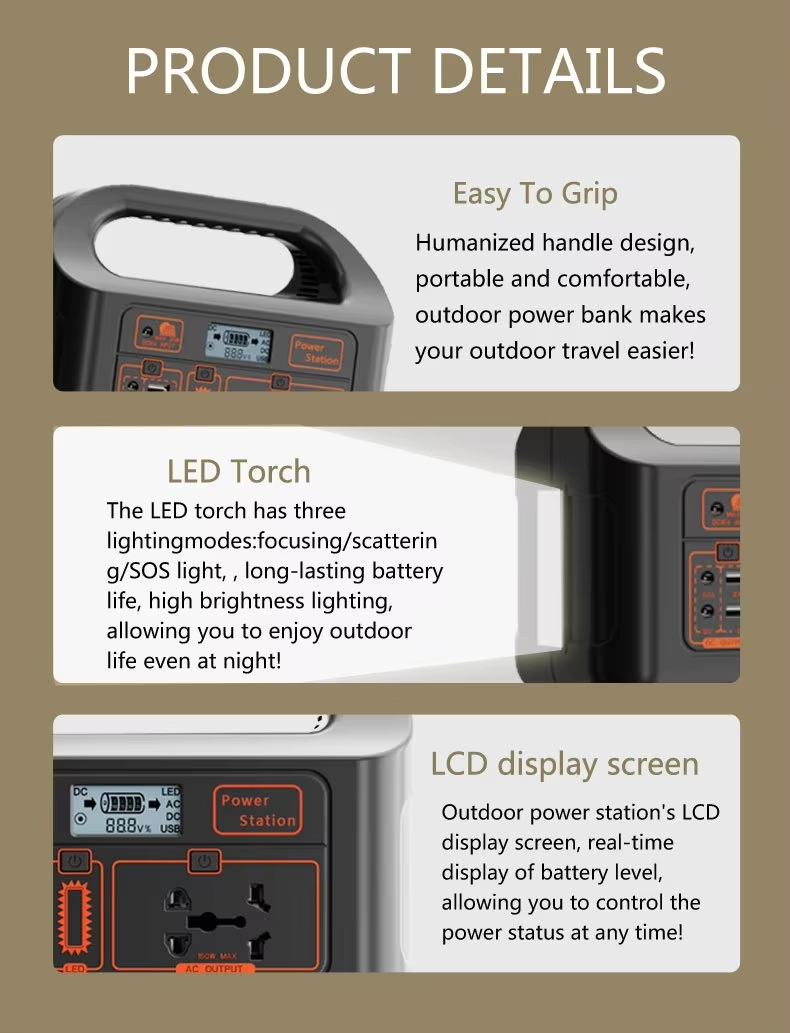

- LED light States: 1: 100% Luminance, 2: 50% Luminance, 3: Flashing, 4: Off

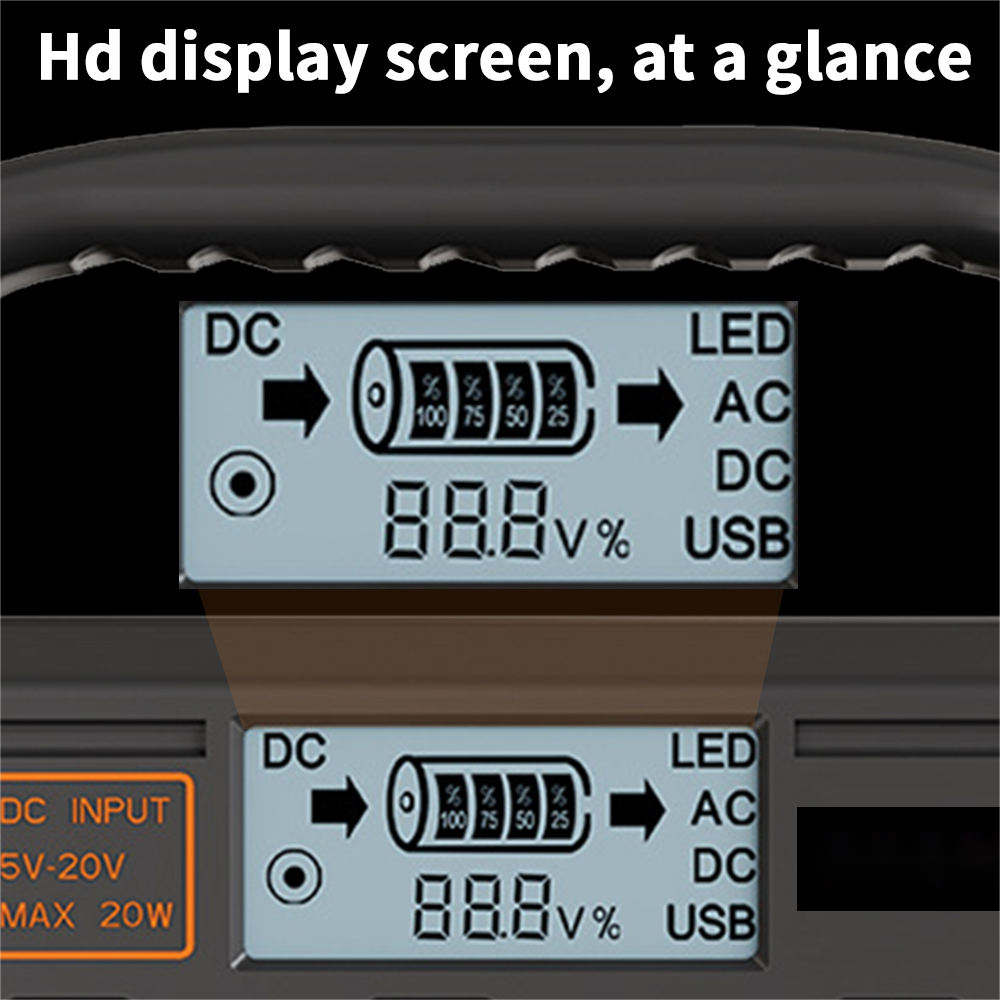

- LCD: Battery Capacity, Battery Voltage, State of Charge, State of Discharge
- Protection Functions: Low Voltage, Over Voltage, Over Load, Over Temperature, Short Circuit

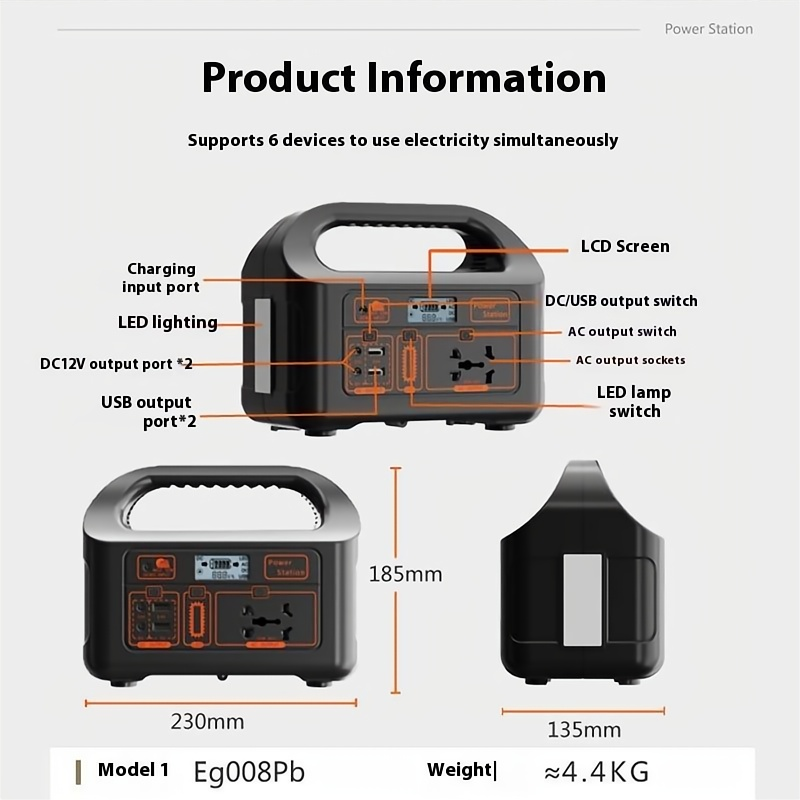

Physical Details:
- Structural Characteristics: ABS Fireproof Enclosure
- Gross Weight(kg): 4.2kg

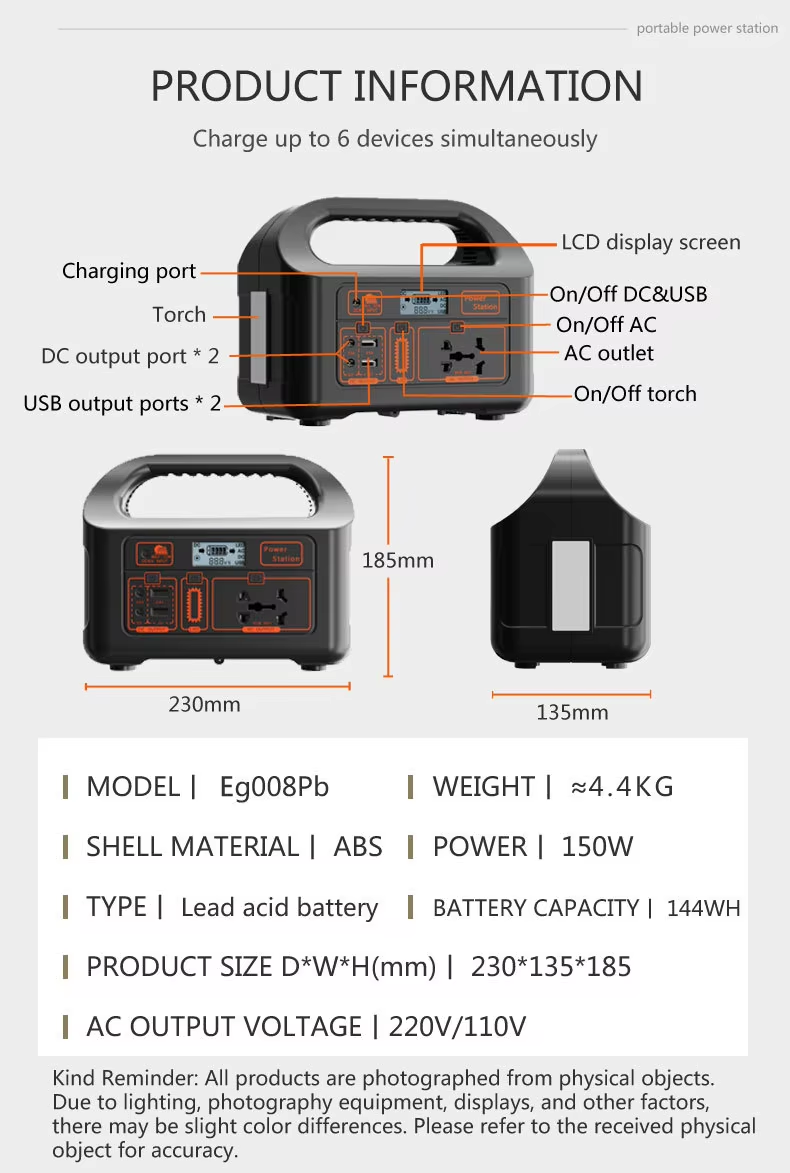

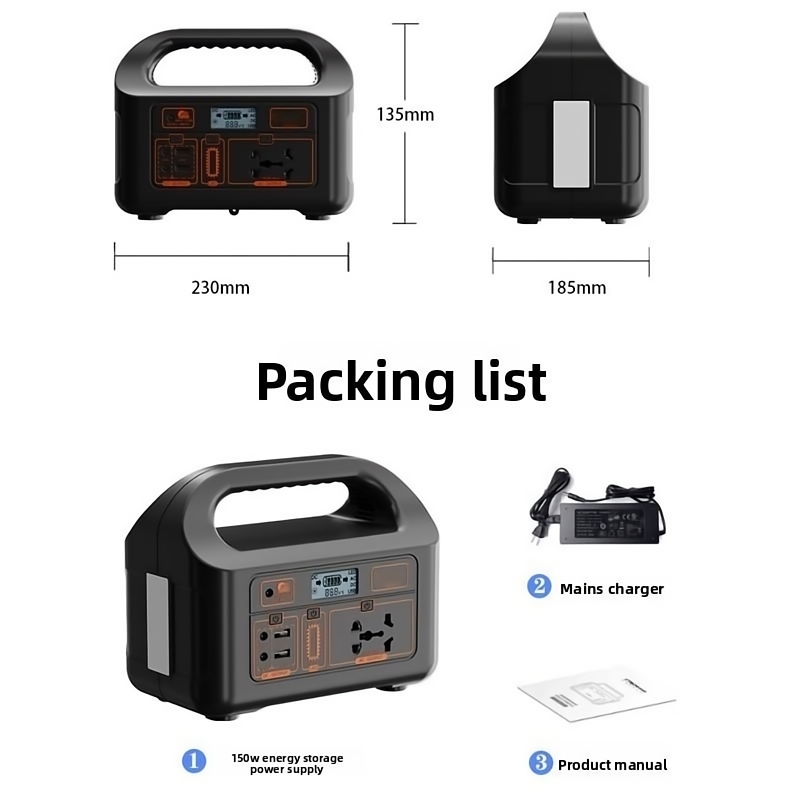

- Product Size W*D*H(mm): 230*135*185
- Heat Dissipation: Intelligent Temperature Control Cooling Fan
- Noise: 1 Meter Distance < 45 dB
Operating Conditions:
- Operating Ambient Temperature: -10°C~40°C
- Operating Environment Humidity: 10~85%
- Storage Ambient Temperature: -20~70°C Without Condensation
- Storage Environment Humidity: 5~90%
