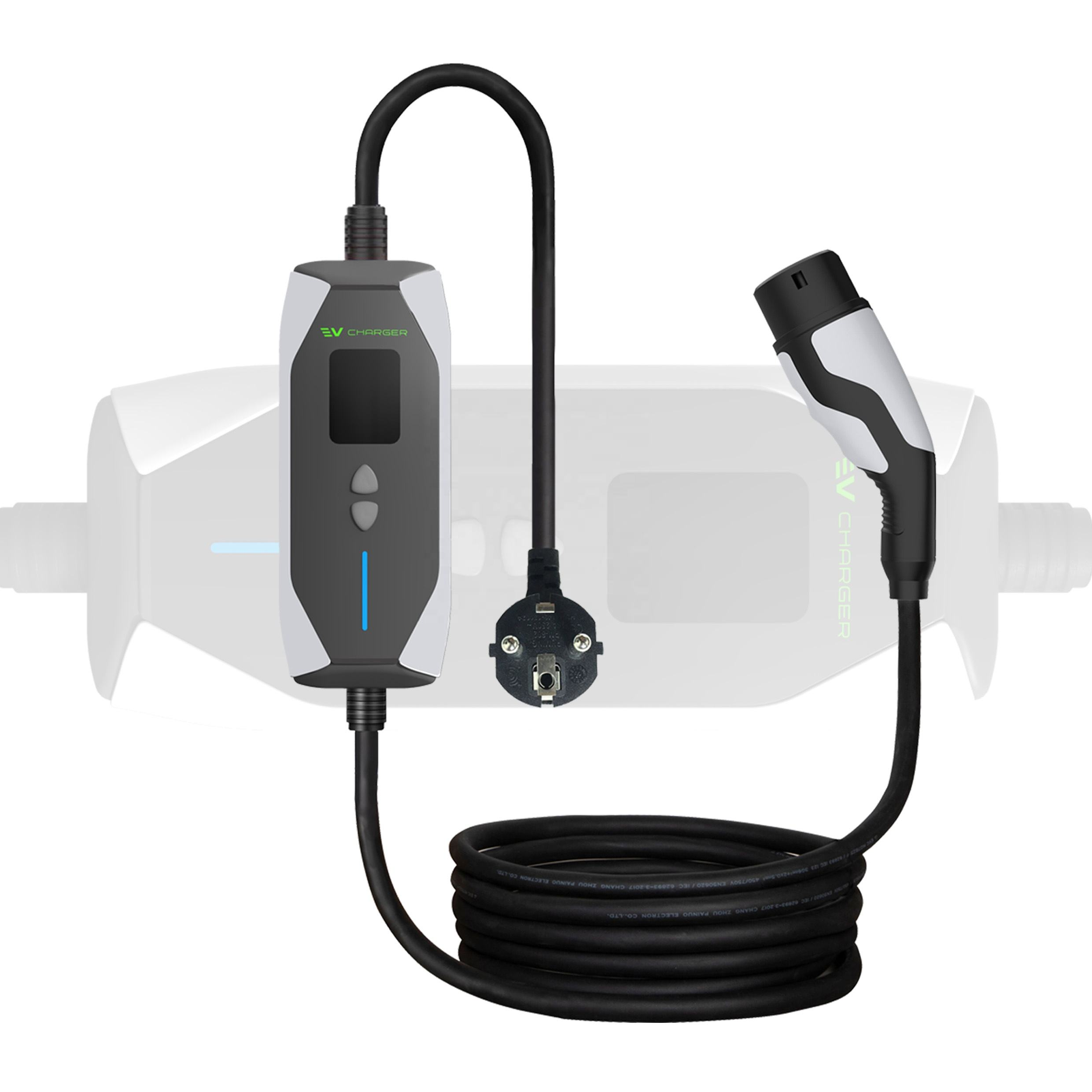

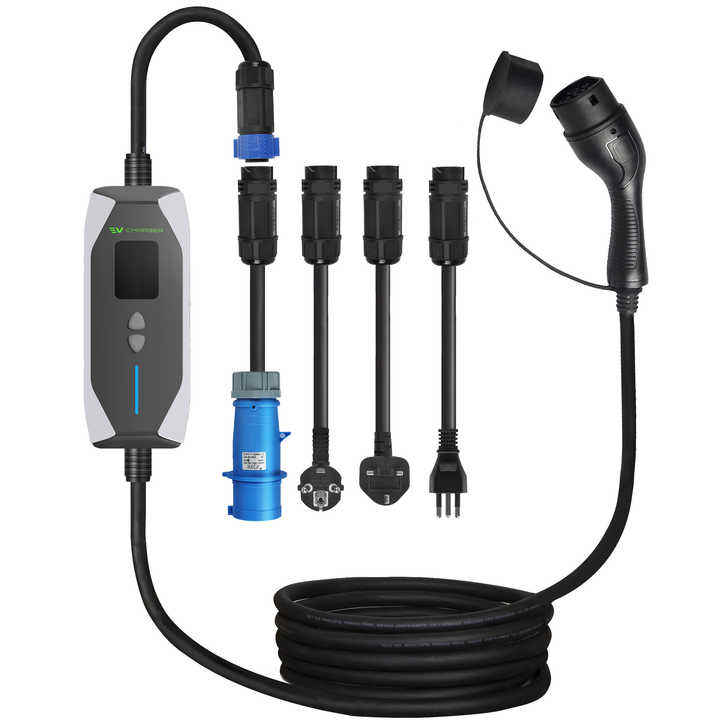

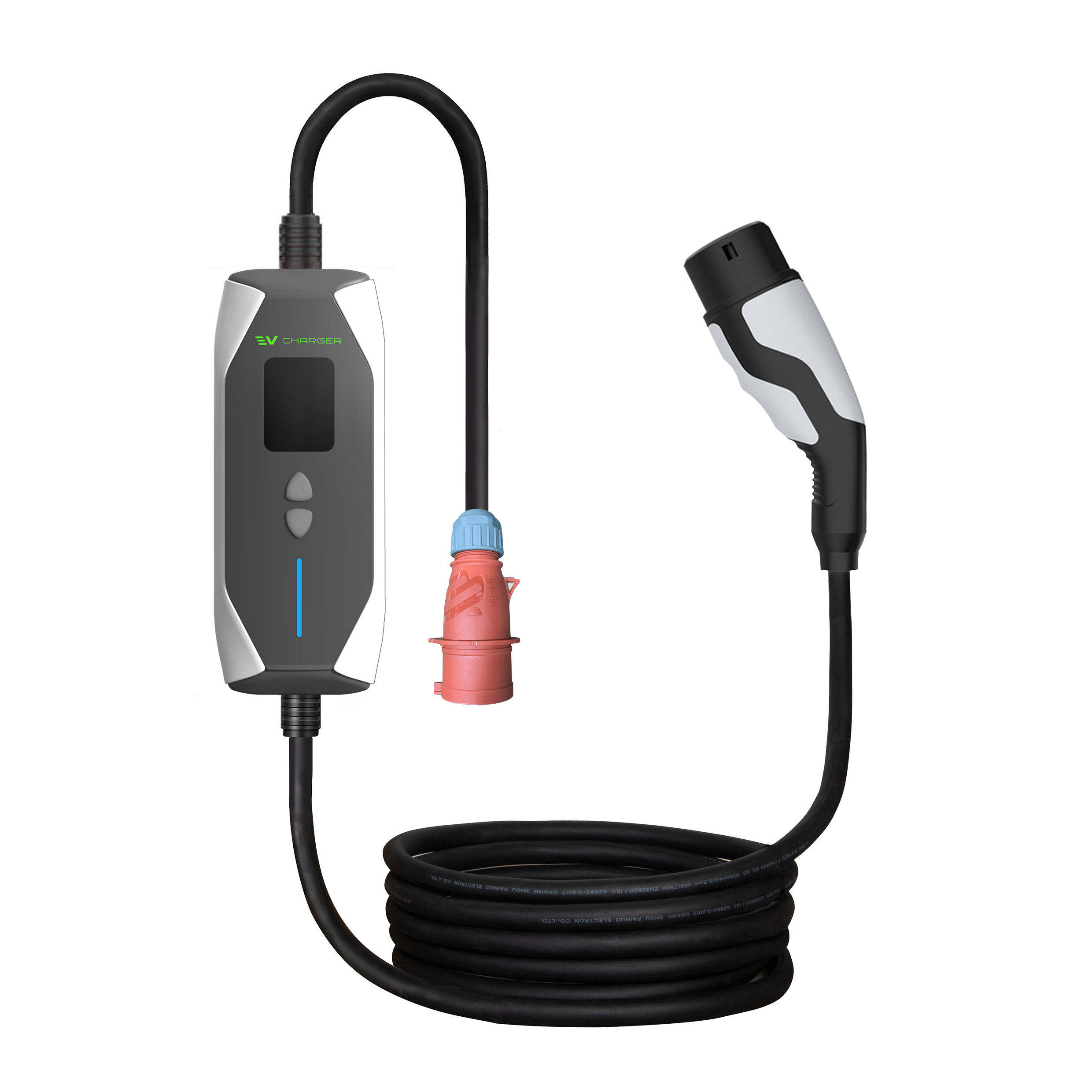

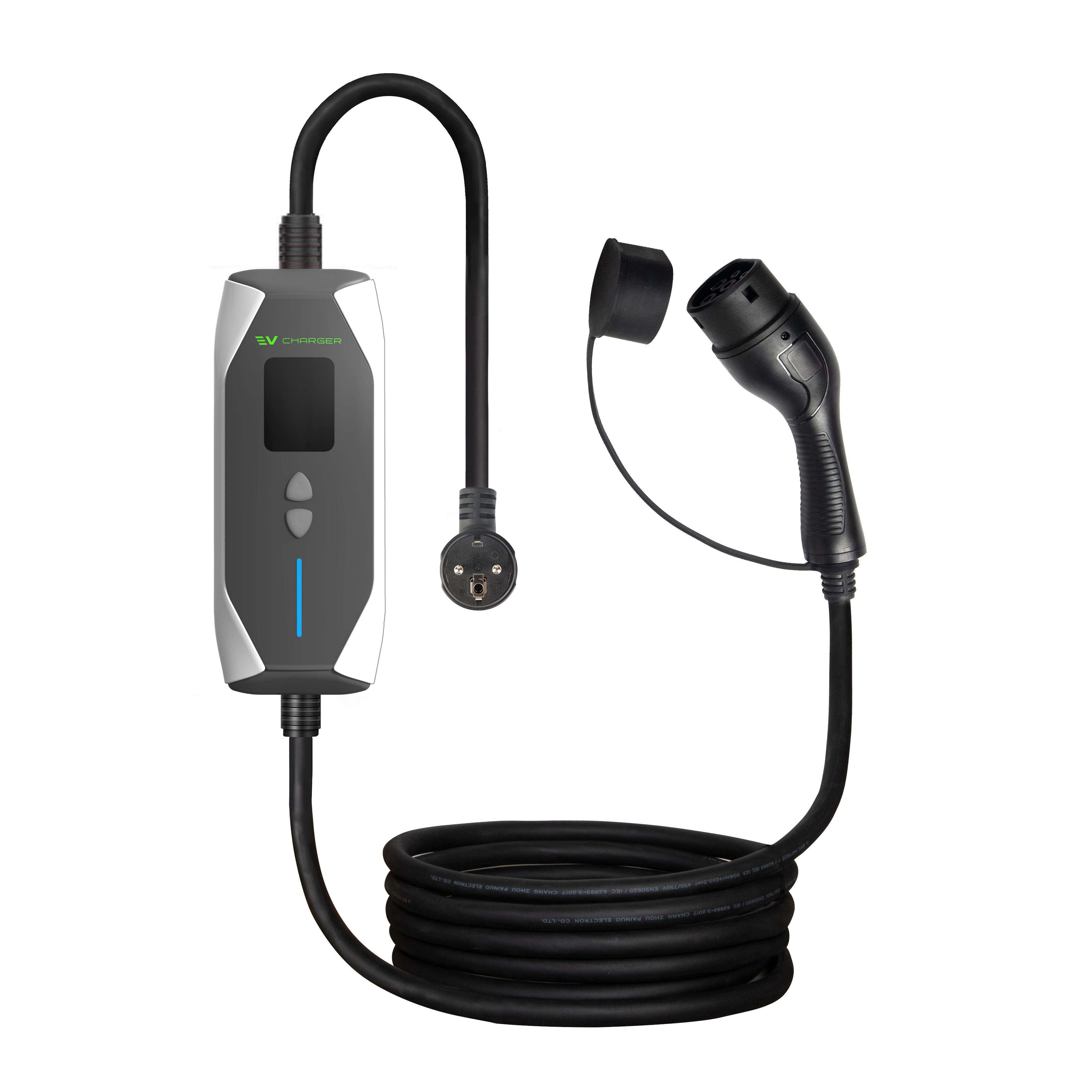

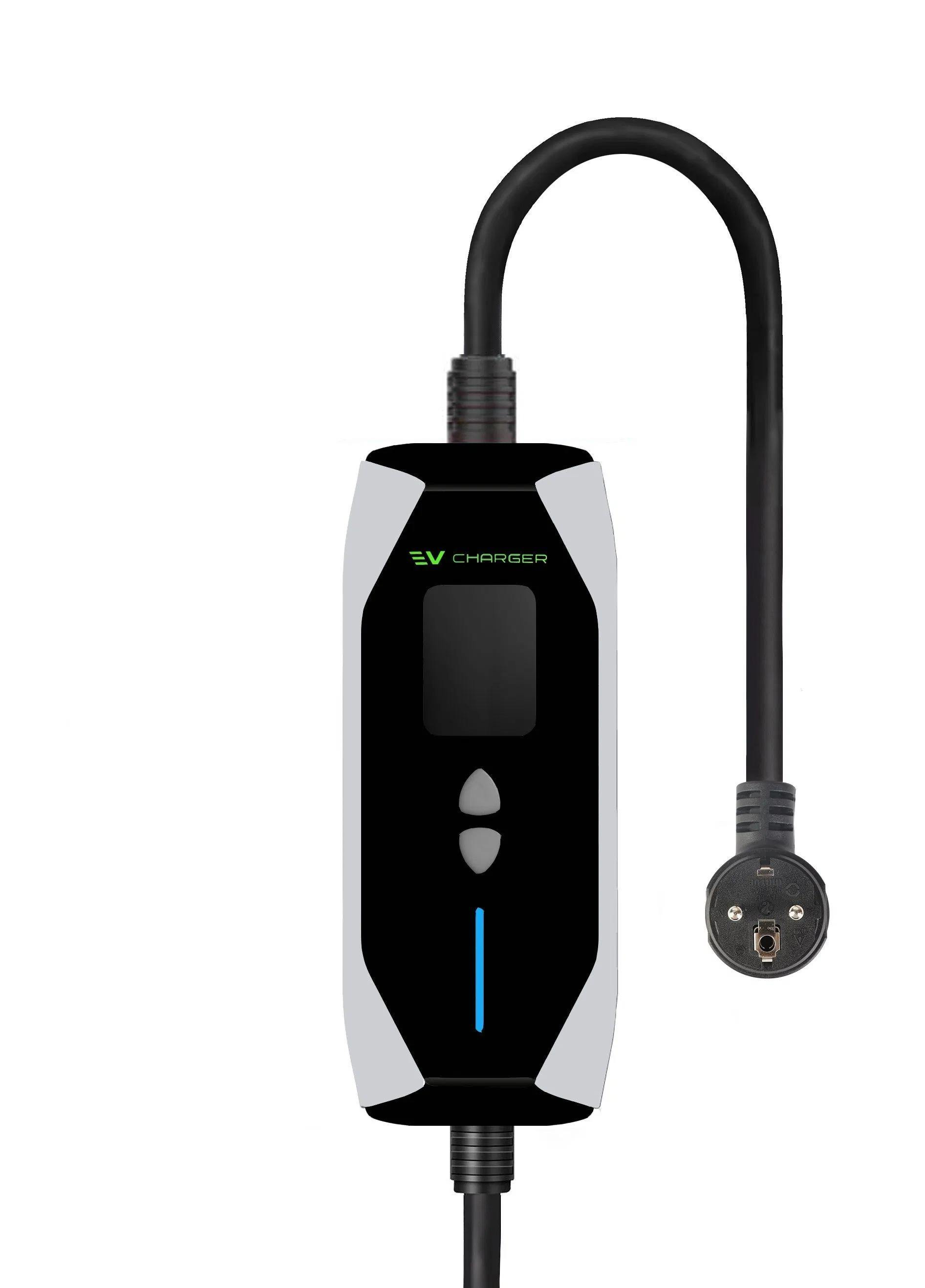

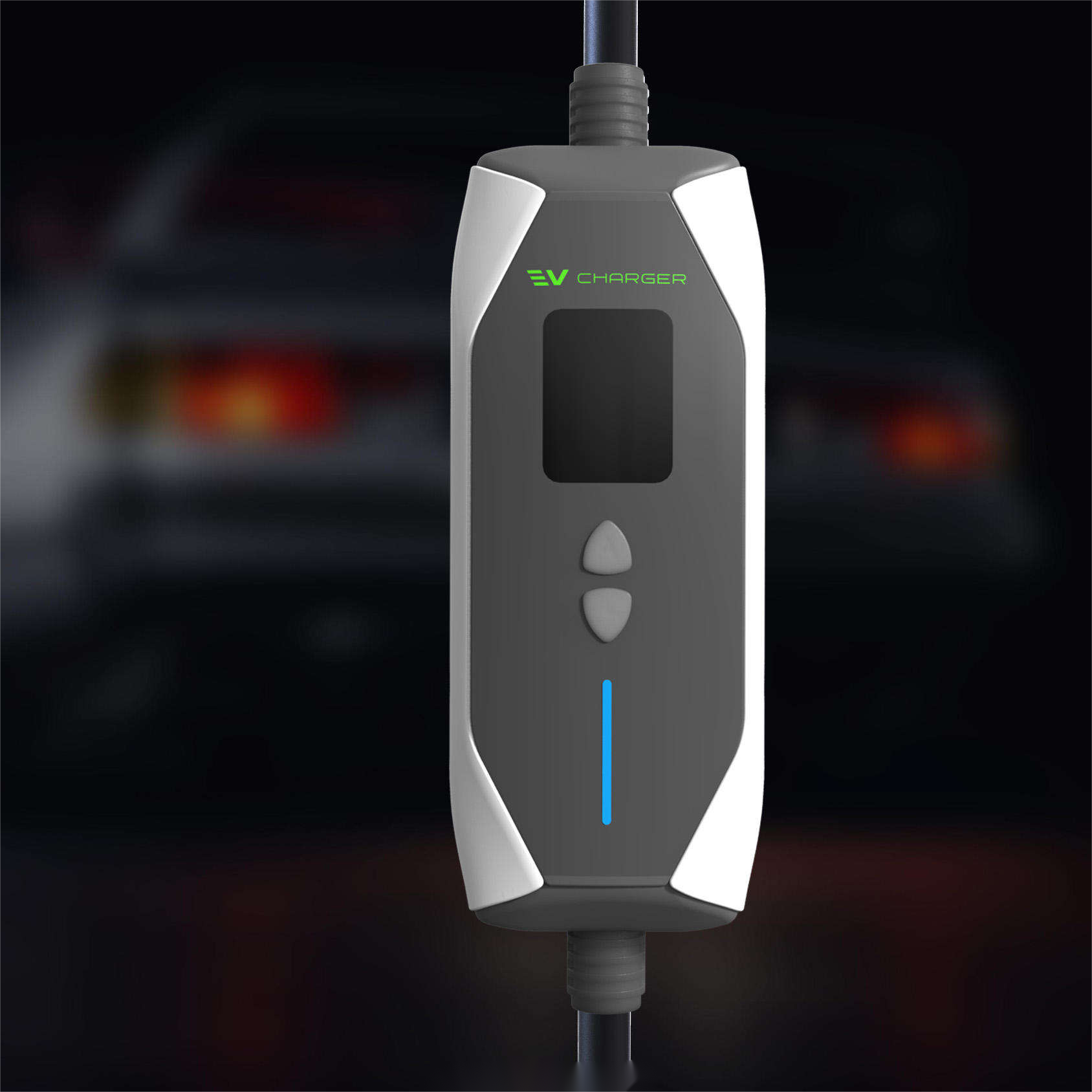

DXB3 Portable EV Charger (CCS2) | 3.5KW (Single-Phase) / 7KW (Three-Phase)

SUNSPIRE

DXB3 Portable EV Charger (CCS2) | 3.5KW (Single-Phase) / 7KW (Three-Phase)

$0.00 USD

Sold out

0.0

Specification: 3.5KW (Single-Phase)

3.5KW (Single-Phase) 7KW (Three-Phase)

Description

Meet the DXB3 Portable EV Charger, a powerful and adaptable charging solution for your electric vehicle. This series offers two distinct models to cater to different power systems: a 3.5KW single-phase unit perfect for home use, and a 7KW three-phase unit for faster charging on compatible systems. Featuring a large display, robust safety features, and optional smart control, the DXB3 is ready for any charging scenario.

Key Features Across Both Models:

Large 2.4" LCD Screen: Stay informed with a clear and bright 2.4-inch LCD display, complemented by a three-color LED indicator, which provides all essential real-time charging information.
Smart Connectivity (Optional): Upgrade your experience with optional Tuya App integration. This allows you to monitor charging status, set schedules, and control your charger remotely from your smartphone.
Comprehensive Safety System: Your safety is paramount. The DXB3 is equipped with a full suite of protections:
- Over Current Protection
- Residual Current Protection
- Ground Protection
- Surge Protection
- Over/Under Voltage Protection
- Over Temperature Protection
All-Weather Durability: Built to last with an IP65-rated outshell and an IP54-rated connector, this charger is protected against dust and water, ensuring reliable performance indoors and out.
Certified and Portable: CE certified and designed for maximum portability. Its lightweight (2.5kg) and compact frame makes it easy to take with you on the road.
Flexible Cable Length: Available in 5, 7, or 10-meter cable lengths, providing ample reach in any parking situation.

Choose Your Power System:

Select the model that aligns with your available electrical infrastructure.

3.5KW Single-Phase Model (DXB3-3.5KW):
- Power Supply: 1P+N+PE (Single-Phase)
- Max Power: 3.5KW
- Max Current: 16A
- Perfect for standard home outlets and efficient overnight charging.
7KW Three-Phase Model (DXB3-7KW):
- Power Supply: 3P+N+PE (Three-Phase)
- Max Power: 7KW
- Max Current: 32A
- Designed for faster charging using a three-phase power source.

Specifications Table:

Feature	3.5KW Model	7KW Model
Model	DXB3-3.5KW	DXB3-7KW
Power Supply	1P+N+PE	3P+N+PE
Rated Voltage	AC200 - 250V	AC200 - 250V
Rated Power	3.5KW	7KW
Maximum Current	16A	32A
Connector	Cable + Type 2	Cable + Type 2
LCD Screen	2.4 inch	2.4 inch
Tuya APP	Optional	Optional
Work Temp.	-25°C to 50°C	-25°C to 50°C
Weight	2.5kg	2.5kg
Size (mm)	230x95x65mm	225x90x60mm
