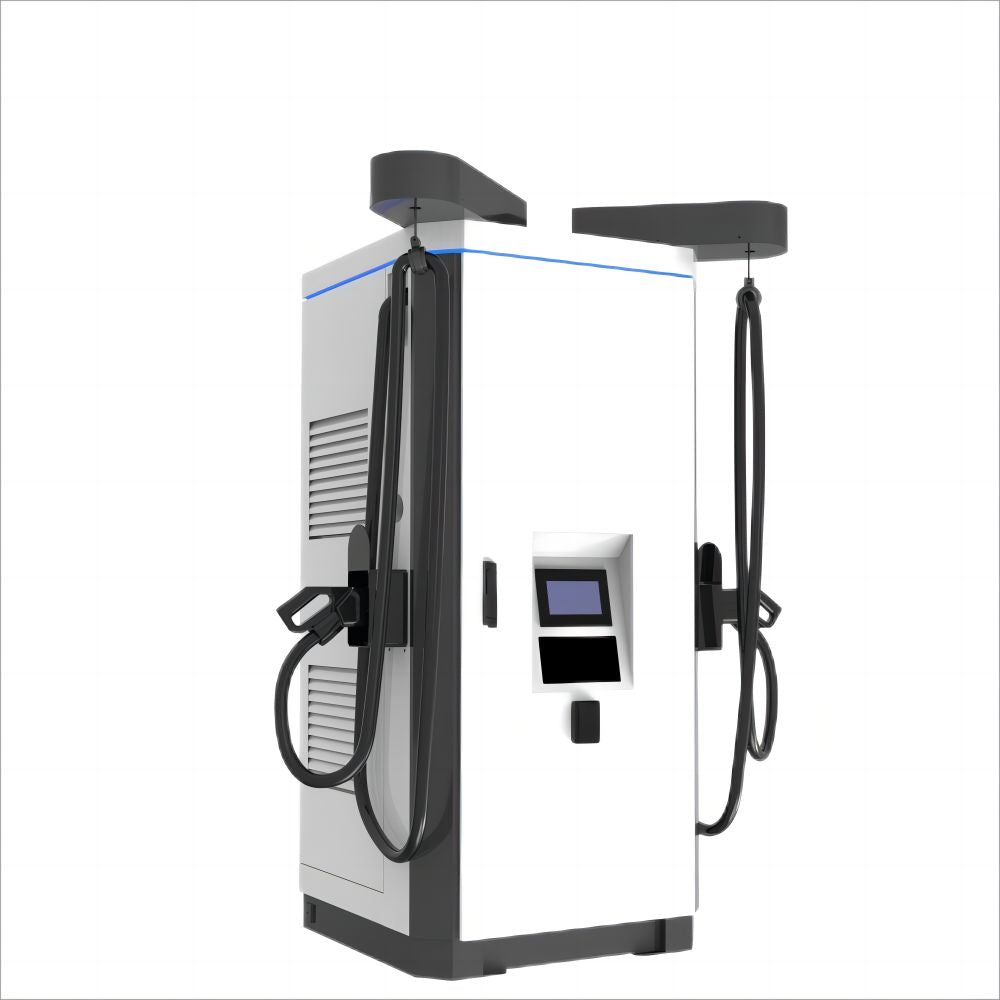

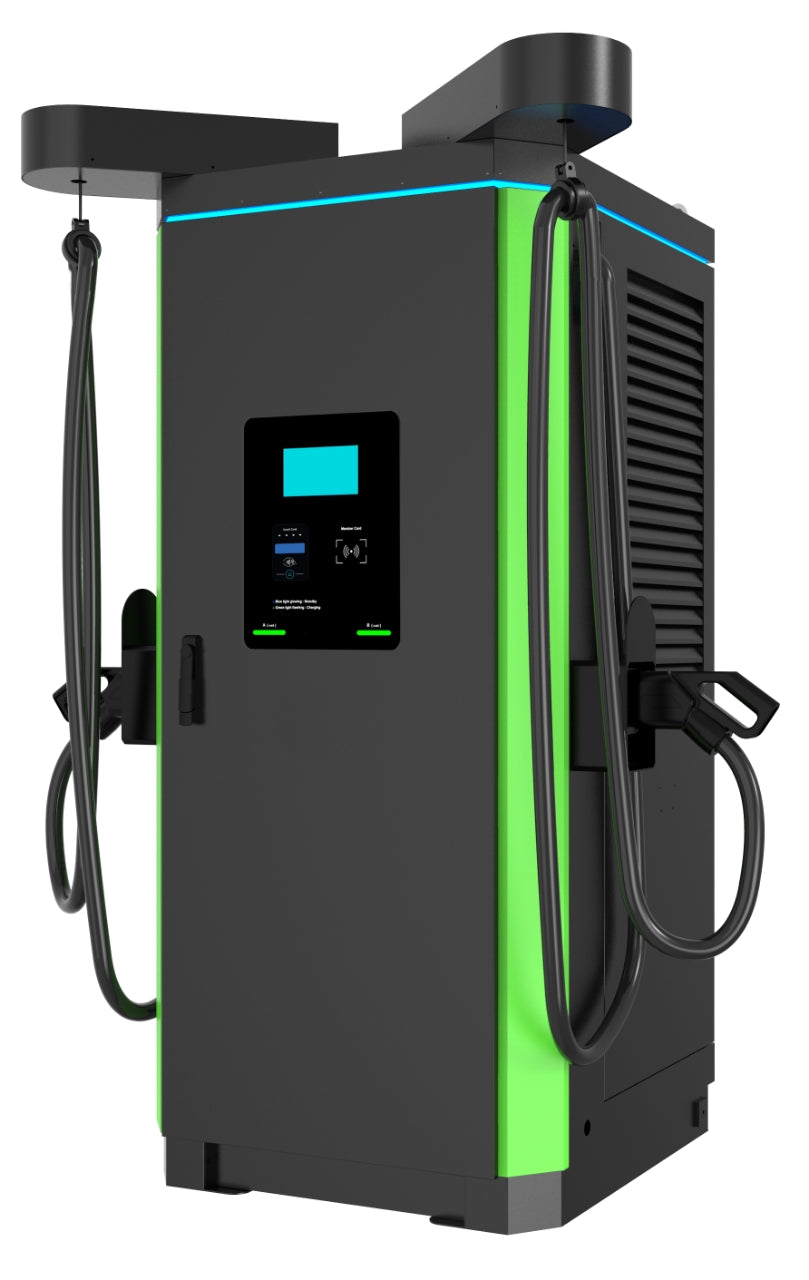

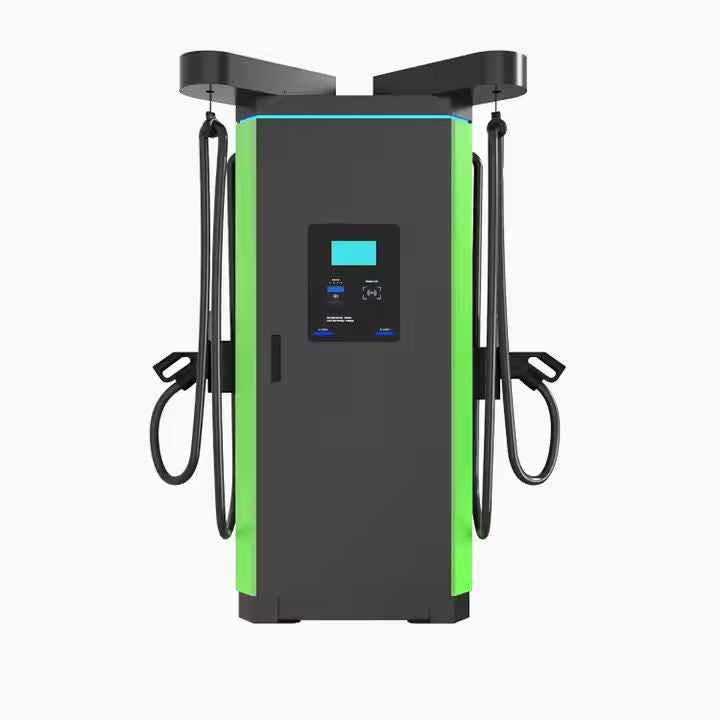

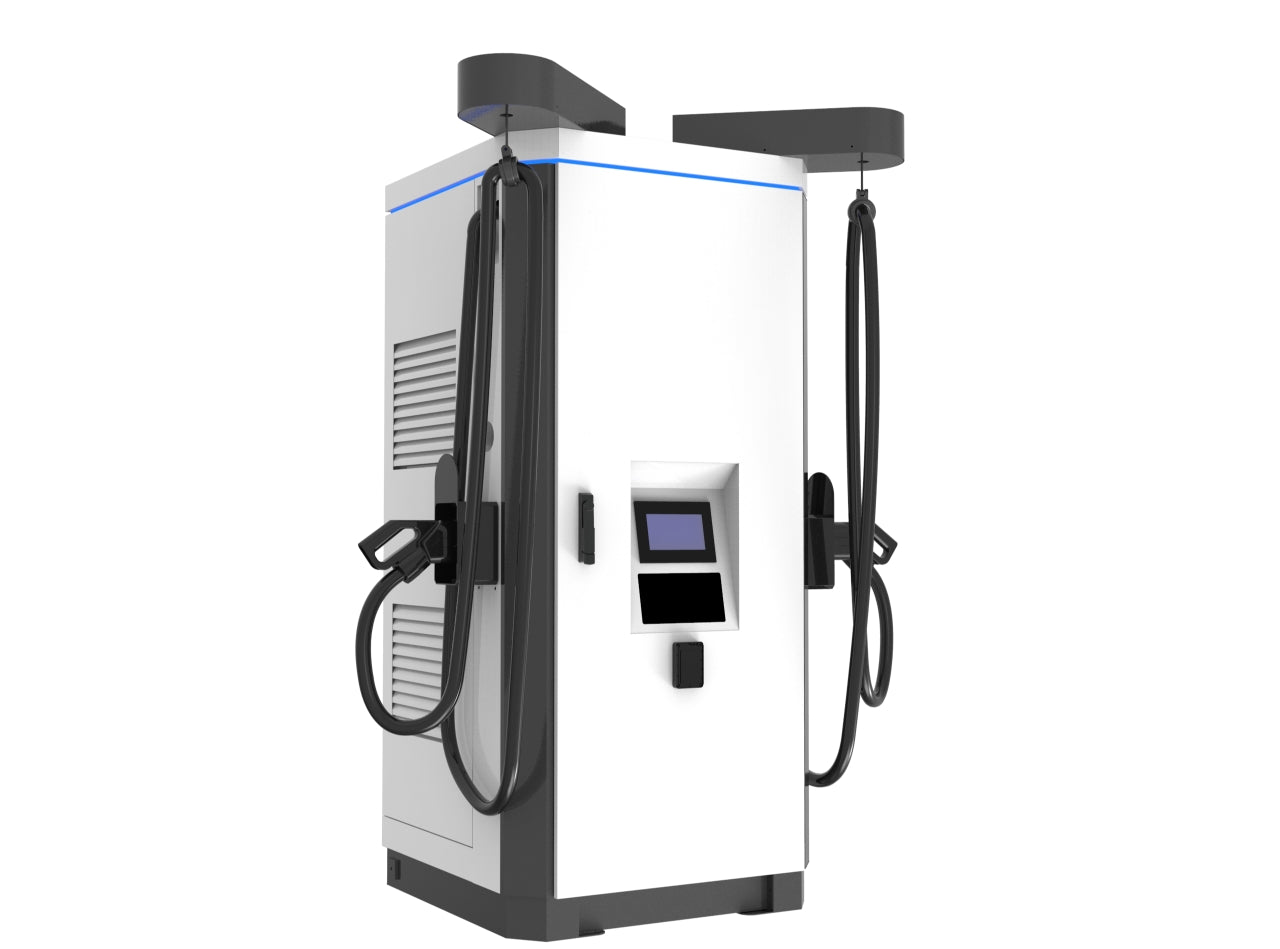

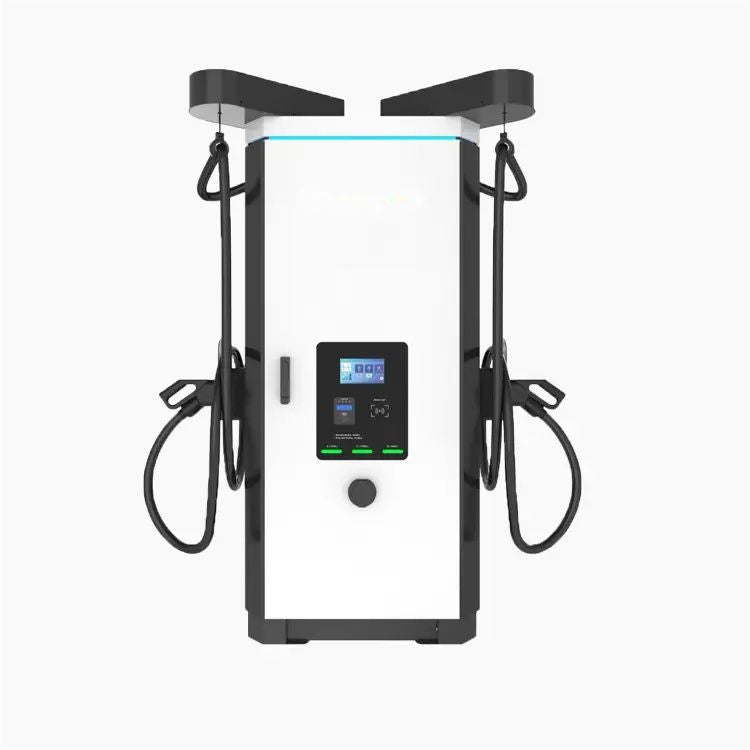

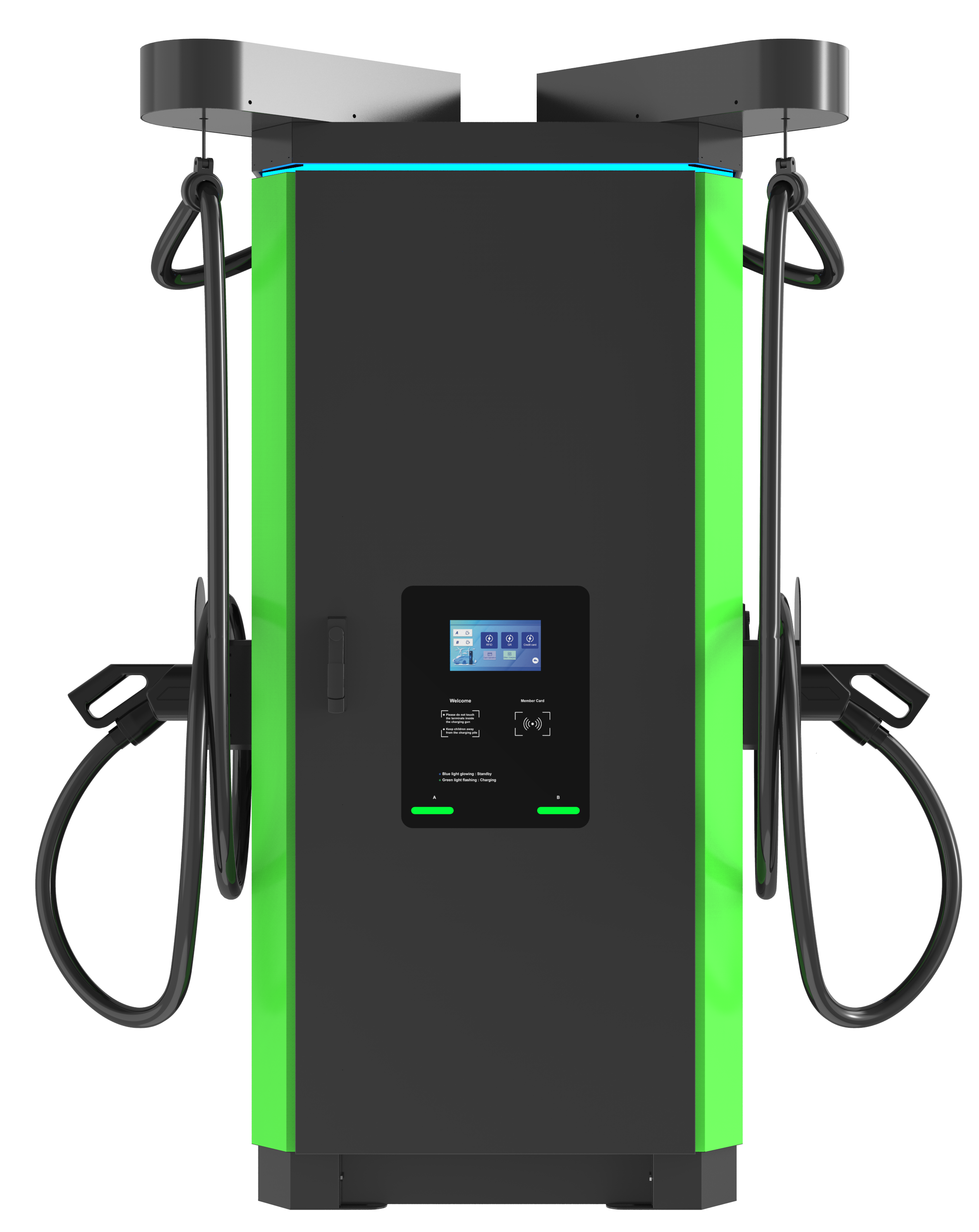

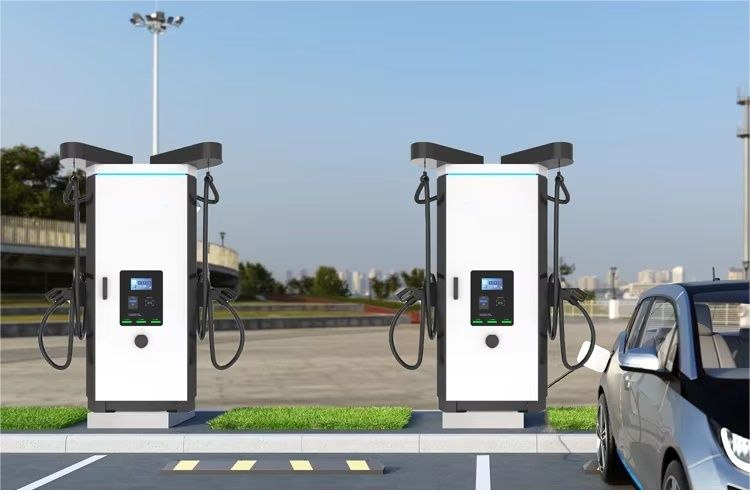

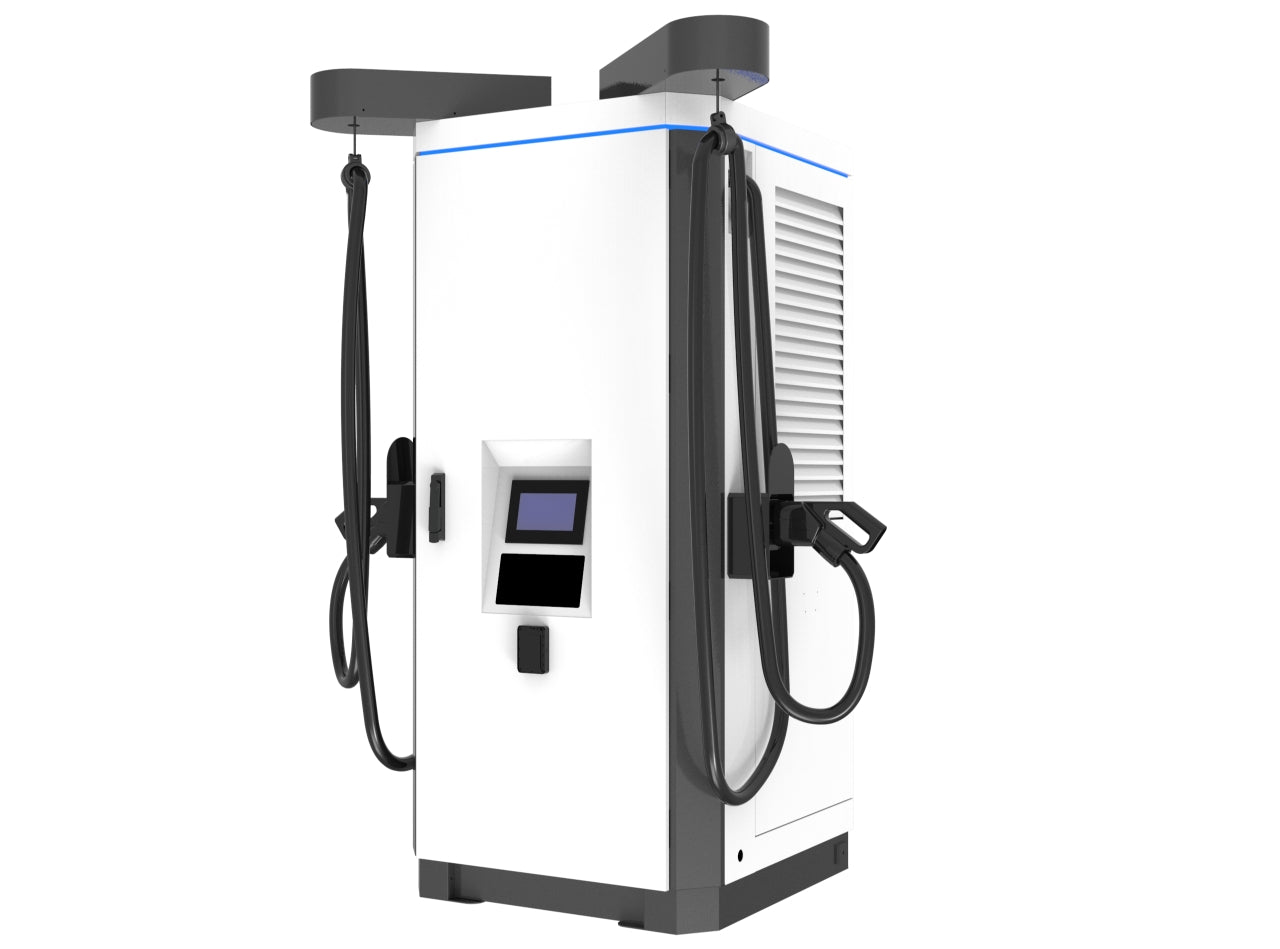

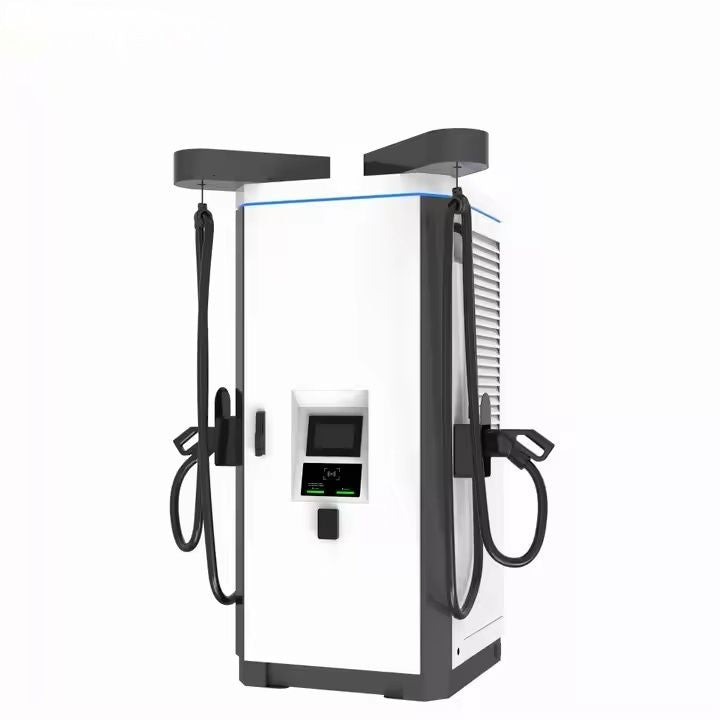

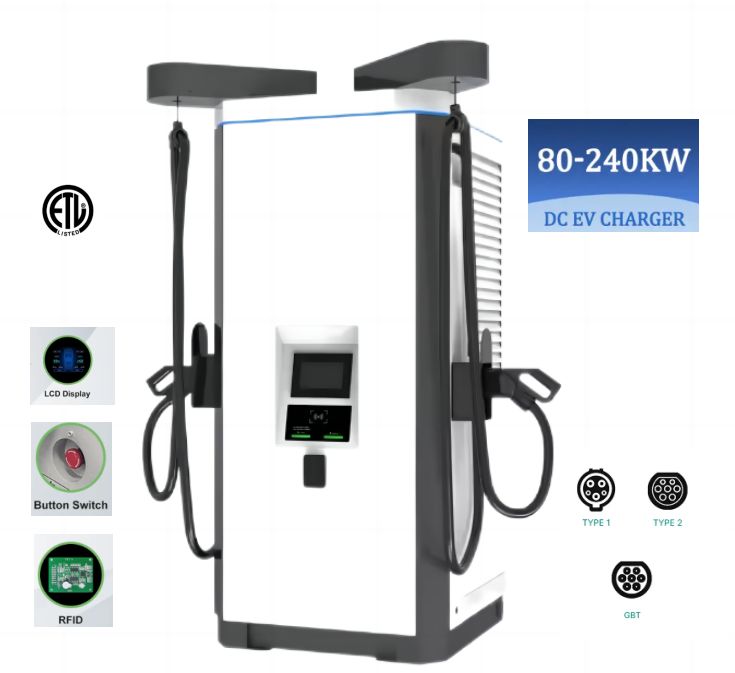

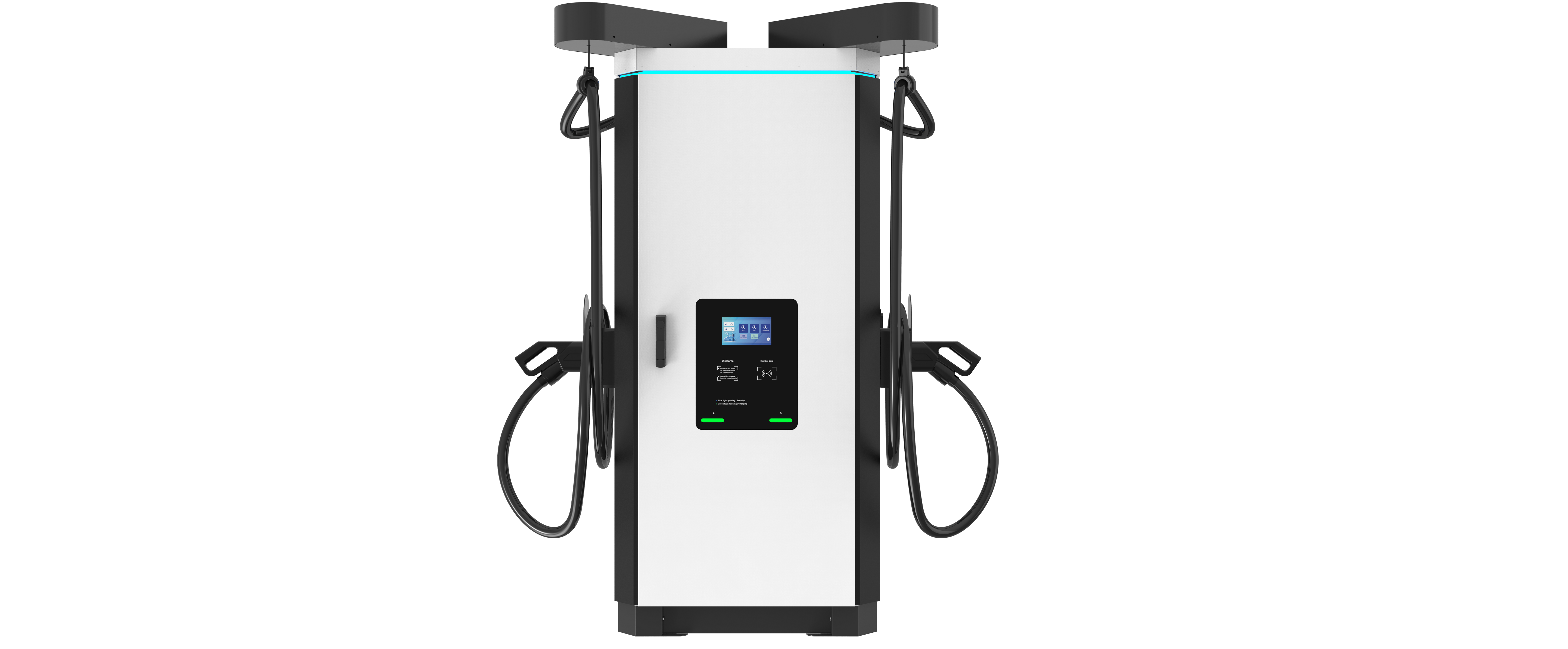

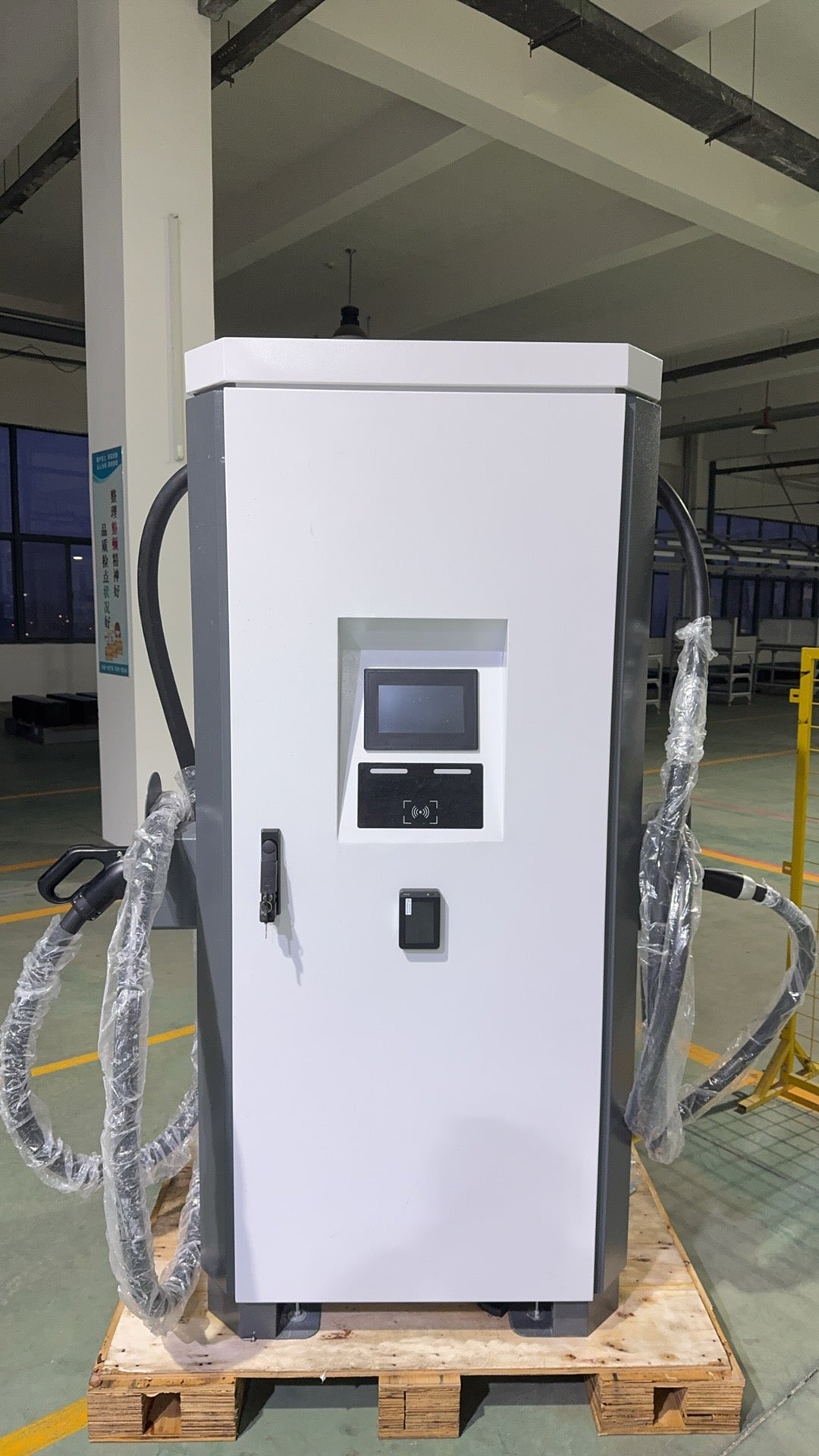

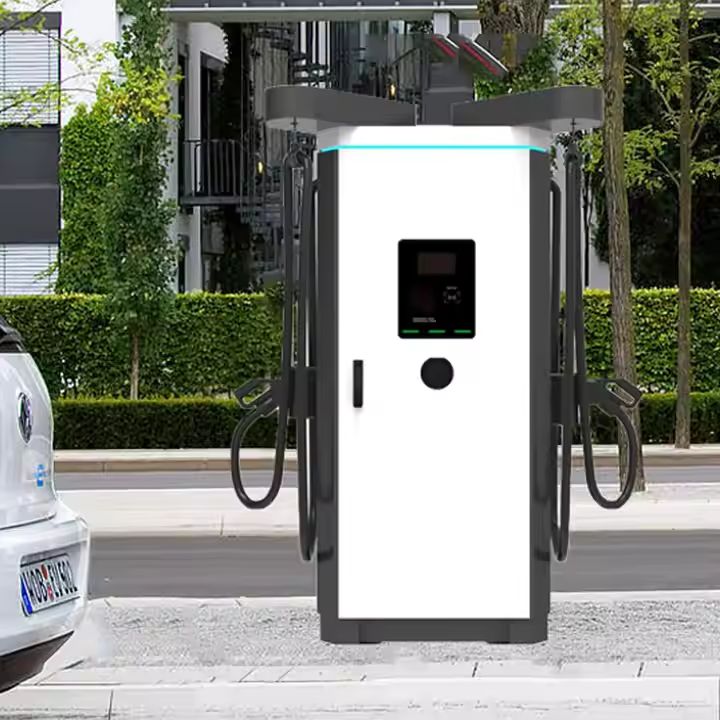

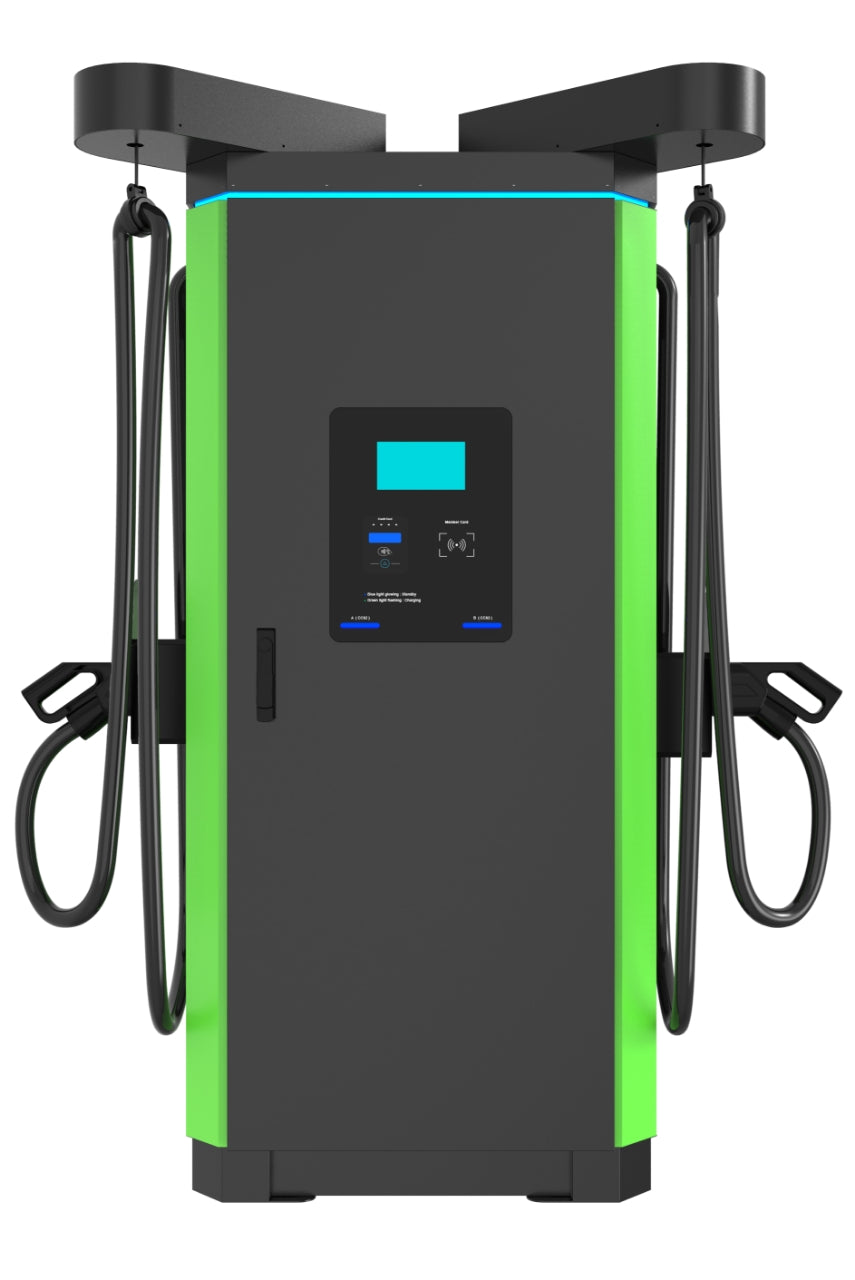

60kW~350kW CCS1/CCS2 Commercial ETL FCC Certification DC Fast Charging EV Car Charger

Product Specifications (Model: XBVDI)

• Model: XBVDI

• Input voltage: 260-480V AC

• Input frequency: 50/60Hz

• Number of charging points: CCS12/CCS22

• Output voltage: 150-1000V DC

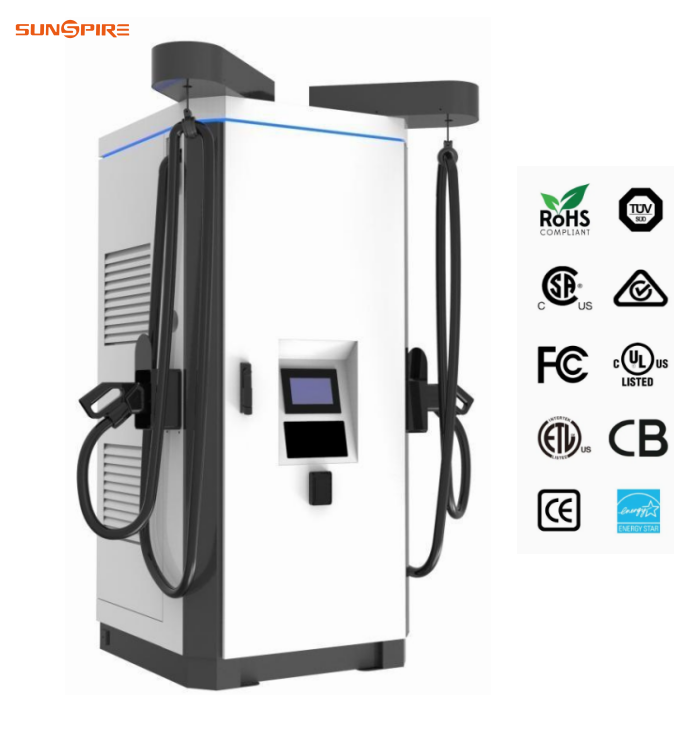

• Certificate: ETL/UL/CSA

• Output power: 60kW/90kW/120kW/180kW/240kW/350kW

• Output current: CCS $\leq 200\text{A DC}$

• Communications protocol: OCPP 1.6 J/SON

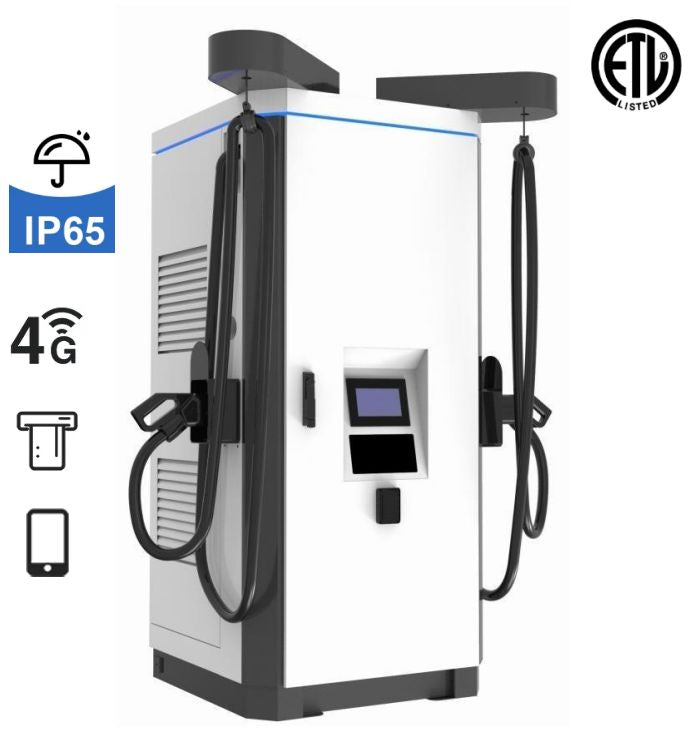

• Protection degree: IP54

• Mechanical impact resistance: IK10

• Dimensions: $850 \times 440 \times 1700\text{mm}$

• Weight: $440\text{kg}/470\text{kg}/500\text{kg}/530\text{kg}/590\text{kg}$

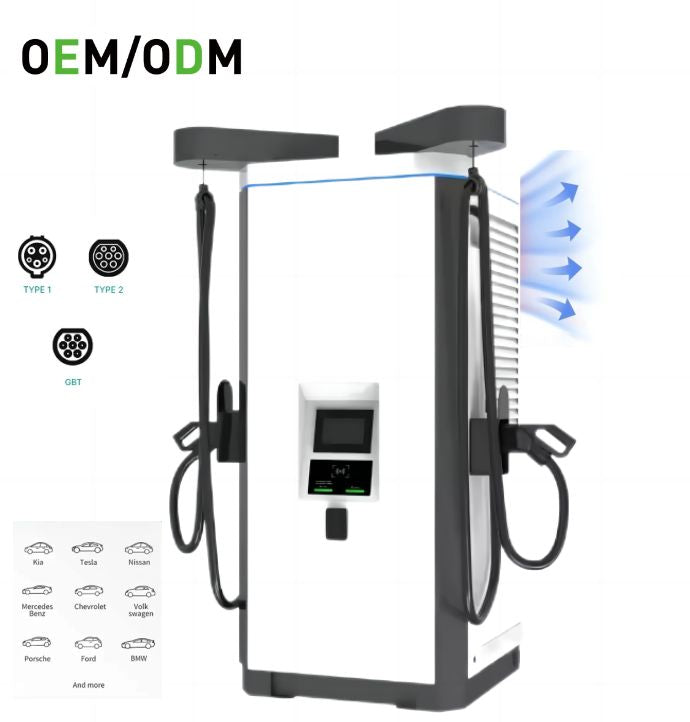

• Customization: OEM & ODM custom made

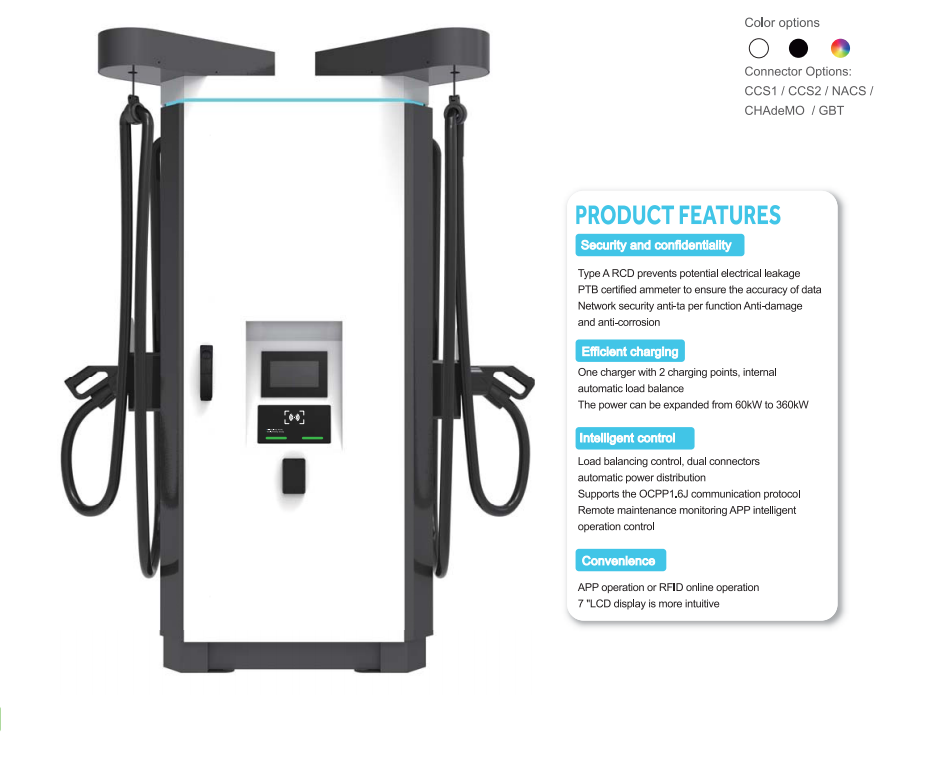

Product Features

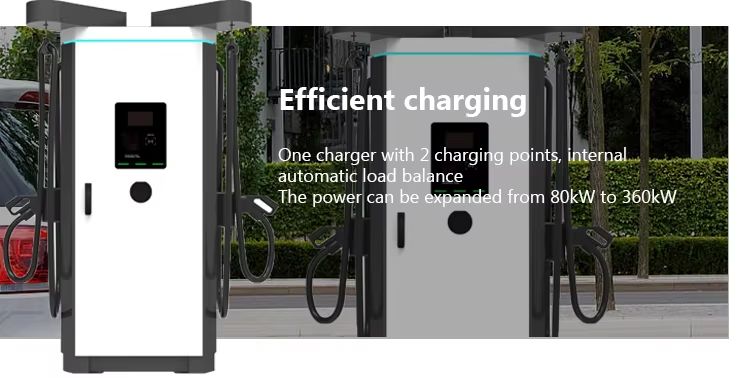

• Efficient Charging: One charger with 2 charging points, internal automatic load balance. The power can be expanded from $60\text{kW}$.

• IP54 Weatherproof Rated: It can withstand the harshest of weather conditions for years to come.

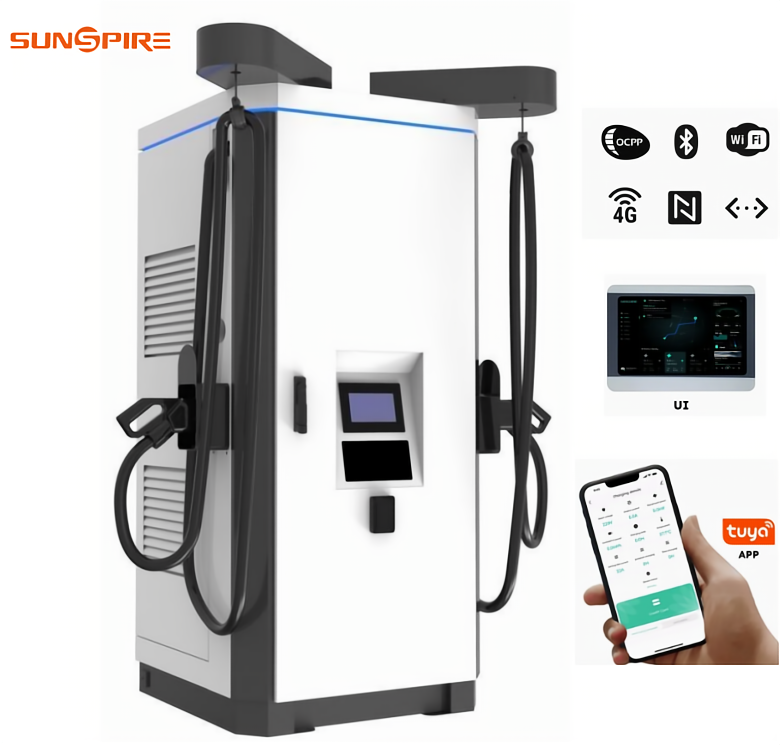

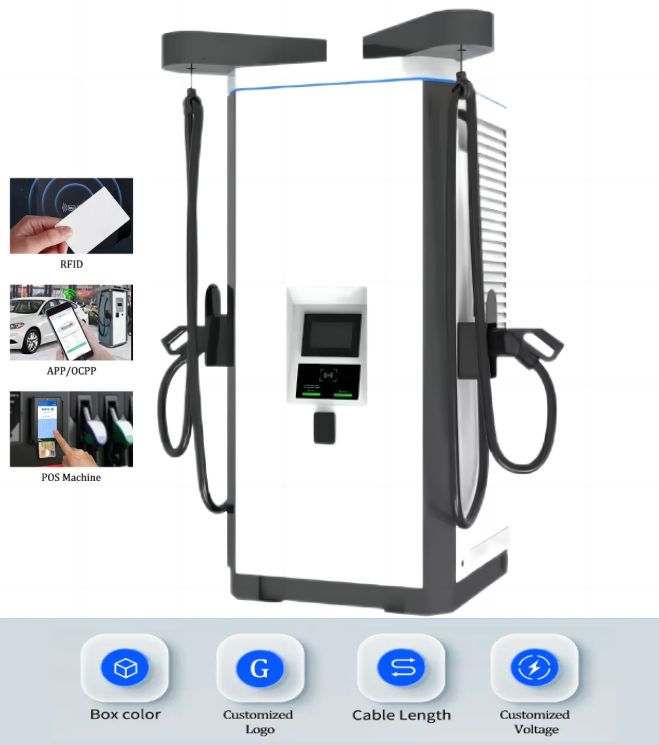

• Convenience: APP operation or RFID online operation. 7" LCD display is more intuitive.

• Intelligent Control: Load balancing control, dual connectors automatic power distribution. Supports the OCPP 1.6J/Communication protocol. Remote maintenance monitoring, APP intelligent operation control.

• Cable Length: $5\text{m}$ (Customized acceptable) TPU Cable. Long service life Environment.
